SERVICING AND MAINTENANCE 403

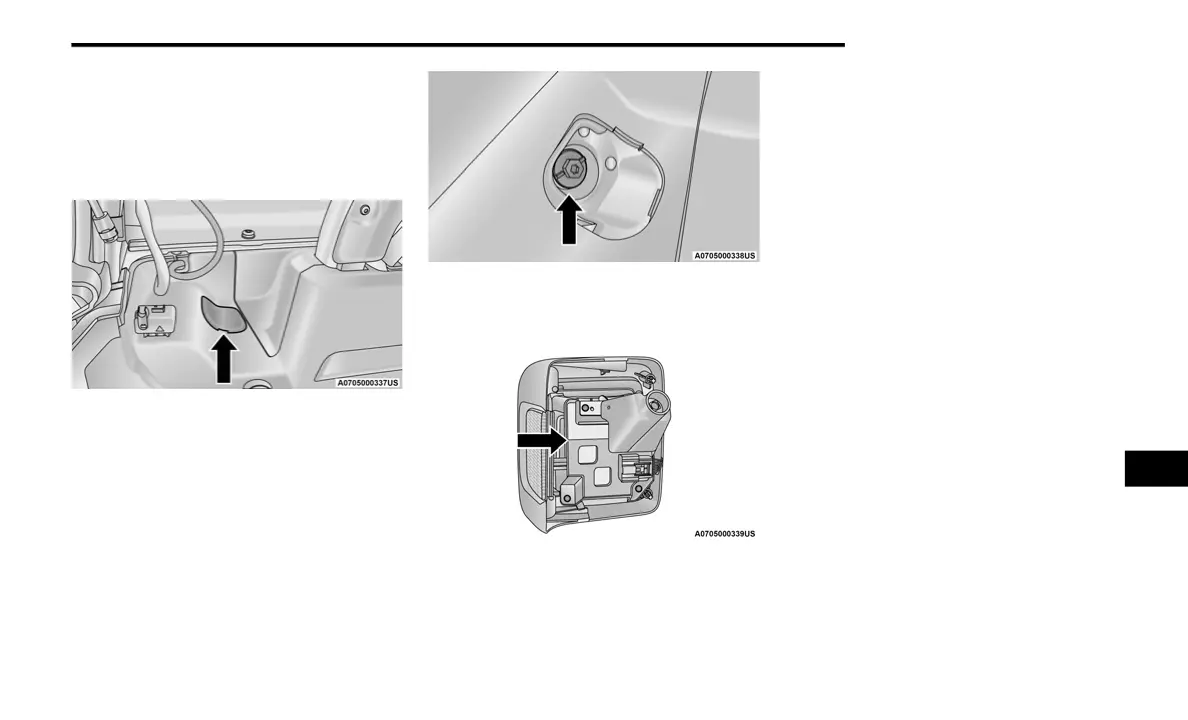

Rear Tail, Stop, Turn Signal, And Backup Lamp
See below steps to replace:
1. Remove interior trim panel cap to access
single retaining screw for tail lamp
assembly.
Trim Cap
2. Remove retaining screw and disconnect
electrical connector, then remove tail lamp
assembly from the vehicle.
NOTE:
If necessary, push in on the assembly tab
located inboard behind the lamp housing.
Retaining Screw
3. Remove the three screws from assembly
bracket to access bulb sockets.
Assembly Bracket
4. Rotate the appropriate socket a quarter
turn counterclockwise, then remove it from
the housing.
5. Pull the bulb straight from the socket to
replace.
Center High Mounted Stop Lamp (CHMSL)
The stop lamp is mounted on a bracket that
extends upward from the swing gate behind the
spare tire. If service is needed, obtain the LED
Assembly from an authorized dealer.
See below steps to replace:
1. Remove the spare tire.
2. Remove the screws holding the tire carrier
cover.
3. Remove two screws from lamp assembly
and disconnect electrical connector.
8
