426 SERVICING AND MAINTENANCE
3. Remove the grommets under the front seat.
First for the rear carpet and then the front
carpet.

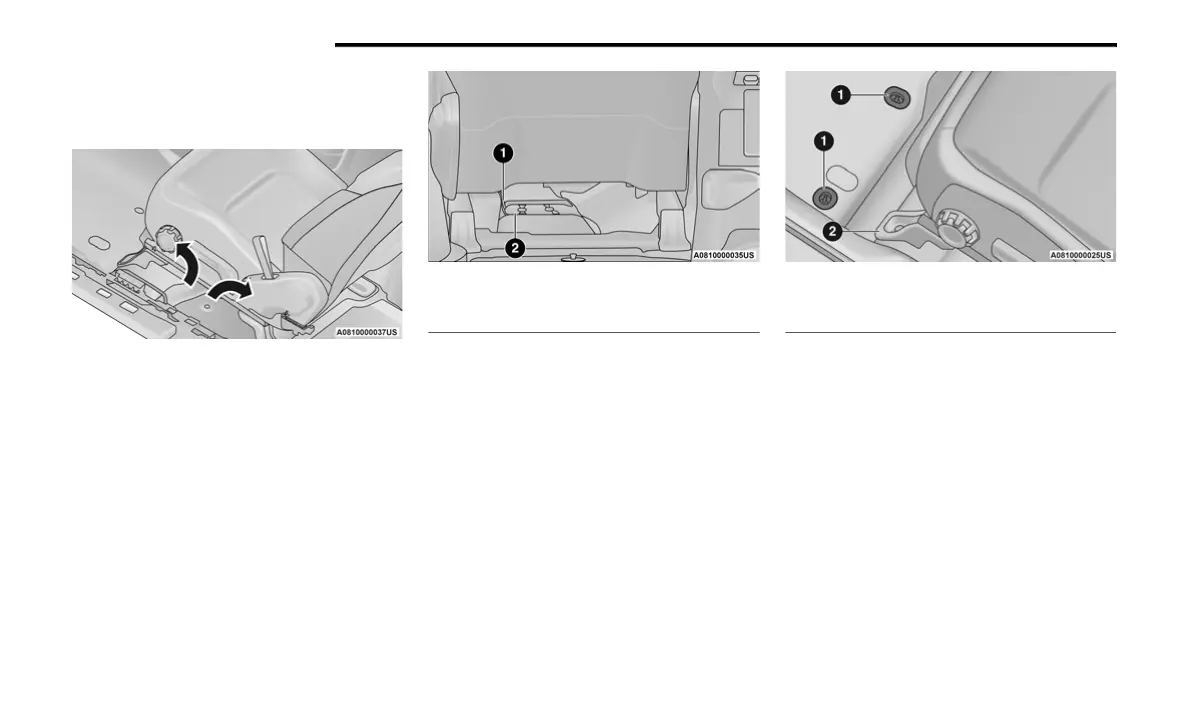

Front And Rear Carpet Split
4. Under the back of the front seat, open the
carpet split and then pull out the rear edge
and slide the carpet to the front (do not
remove the harness).
Rear Underside Of Front Seat
5. Finally open the carpet split around seat
bracket and then remove the last two
grommets.
Front Seat And Floor
6. When reinstalling carpet please perform
these steps in reverse order making sure
that the carpet is tucked under the scuffs,
B-pillar, console, and refasten grommets.
1 — Harness
2 — Carpet Split
1 — Grommets
2 — Carpet Split
