72 GETTING TO KNOW YOUR VEHICLE

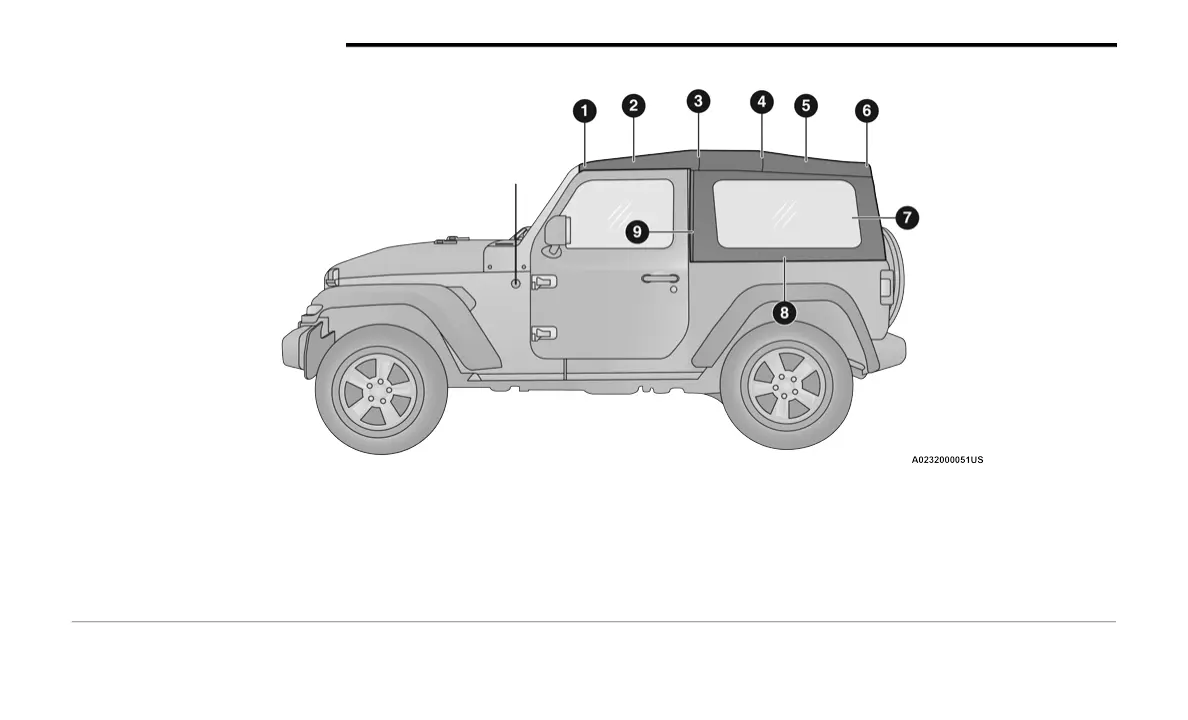

Two Door Side View Components

1 — #1 Bow 6 — #6 Bow

2 — #2 Bow 7 — Rear Quarter Window

3 — #3 Bow 8 — Lower Window Retainer

4 — #4 Bow 9 — Front Window Retainer

5 — #5 Bow
