84 GETTING TO KNOW YOUR VEHICLE

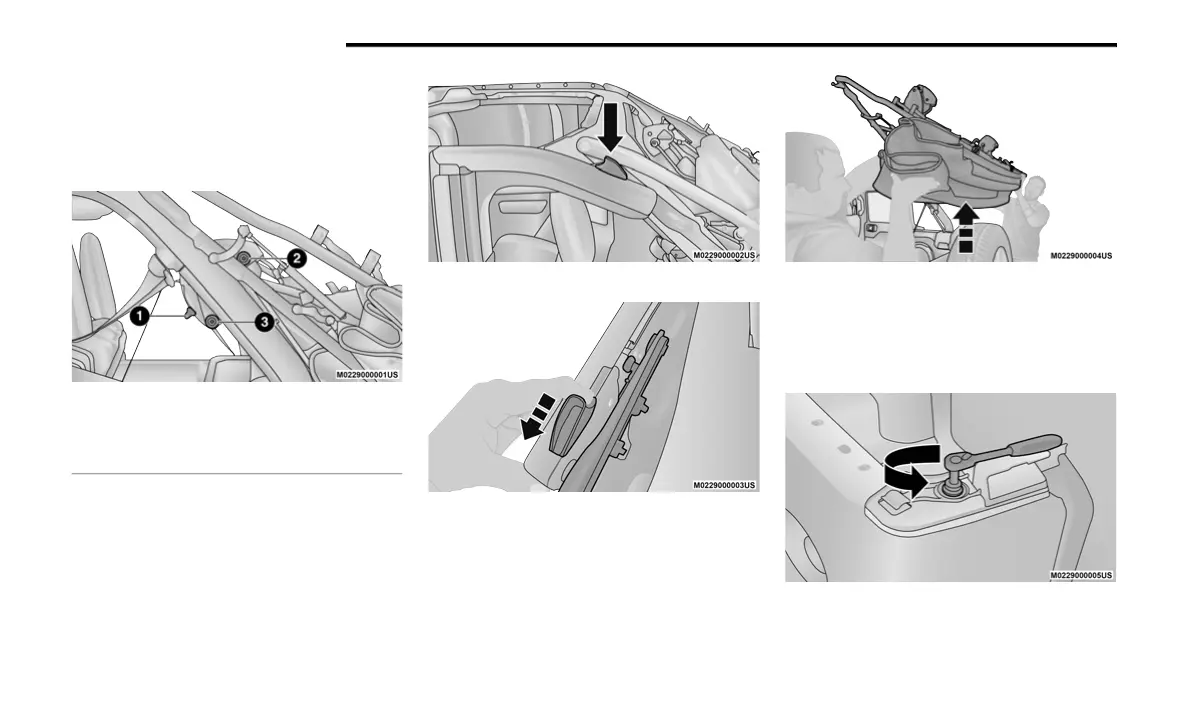

3. Using the provided #40 Torx head driver
and ratchet, unscrew the two Torx head
screws on each lift assist mechanism, then
lift the mechanism up and away from the
vehicle.
Step Three
4. Pull the release lever on top of the rail
rearward to release the side link from the
track.
Step Four
Step Four
5. Repeat on the opposite side.
6. Utilizing two people, lift the soft top up and
away from the vehicle, careful to avoid the
vehicle’s sport bar, trim, and tire carrier.
Store the soft top in a safe, clean, and dry
location.
Step Six
7. Using the provided #50 Torx head driver
and ratchet, unscrew the Torx screw on both
rear corners of the vehicle, removing the
retainers.
Step Seven
1 — Lock Position
2 — Torx Head Screw
3 — Torx Head Screw
