5

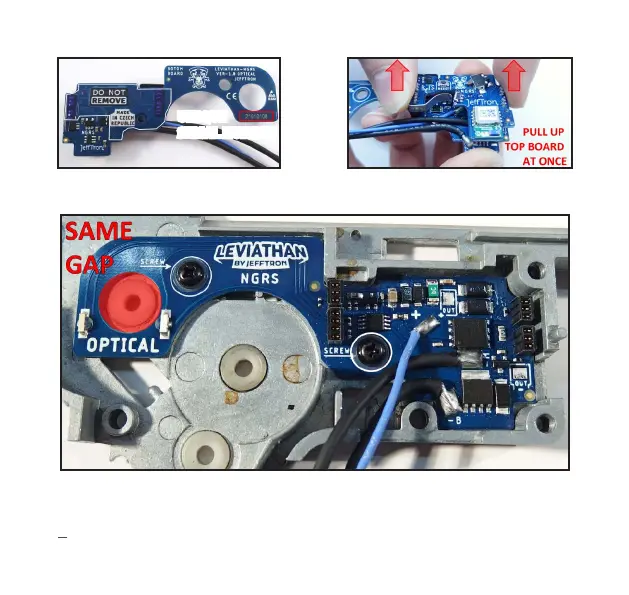

9. Insert the Leviathan-NGRS instead of the original contacts:
- Check if the Leviathan-NGRS is laid at on the gearbox shell.
- Adjust the Leviathan position to the same distance from sector gear bearing (red circle).
- Use screws with washers from package and screw device to gearbox (white circles).
7. Keep in place transparent foil, it pre-
vents from short circuit through gearbox.
8. Unplug Leviathan top board from
the bottom - all jumpers at one time.
UNIQUE
SERIAL NUMBER
