6

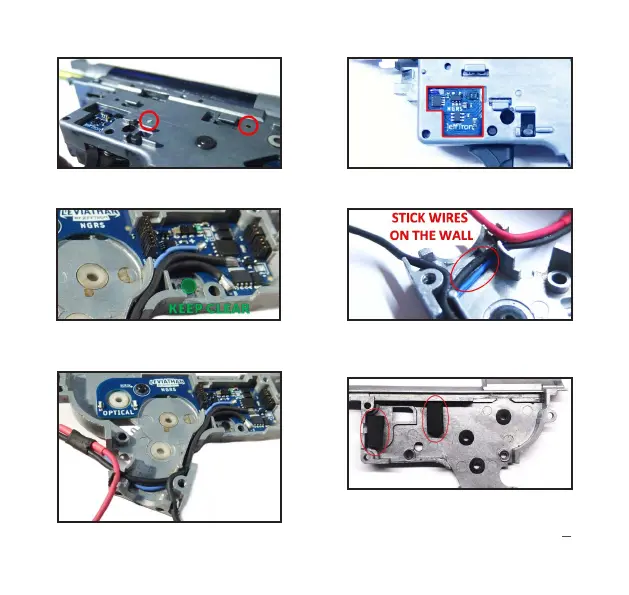

13. Wires under motor have to stick
on the wall. You can use hot glue to x
their position in the gearbox.
12. Place wires in order: blue, -battery,
-motor. Keep clear green hole for pin.
10. Make sure the screws doesn‘t stick
outside of the gearbox. If yes grind it.
11. Check if there are any parts contact
with the gearbox around the red area.
14. Overall view to the wiring in gearbox.
15. Stick 2 foams to the right gearbox
shell according this image (foams are
included in the package).
