Installation Cont.
6

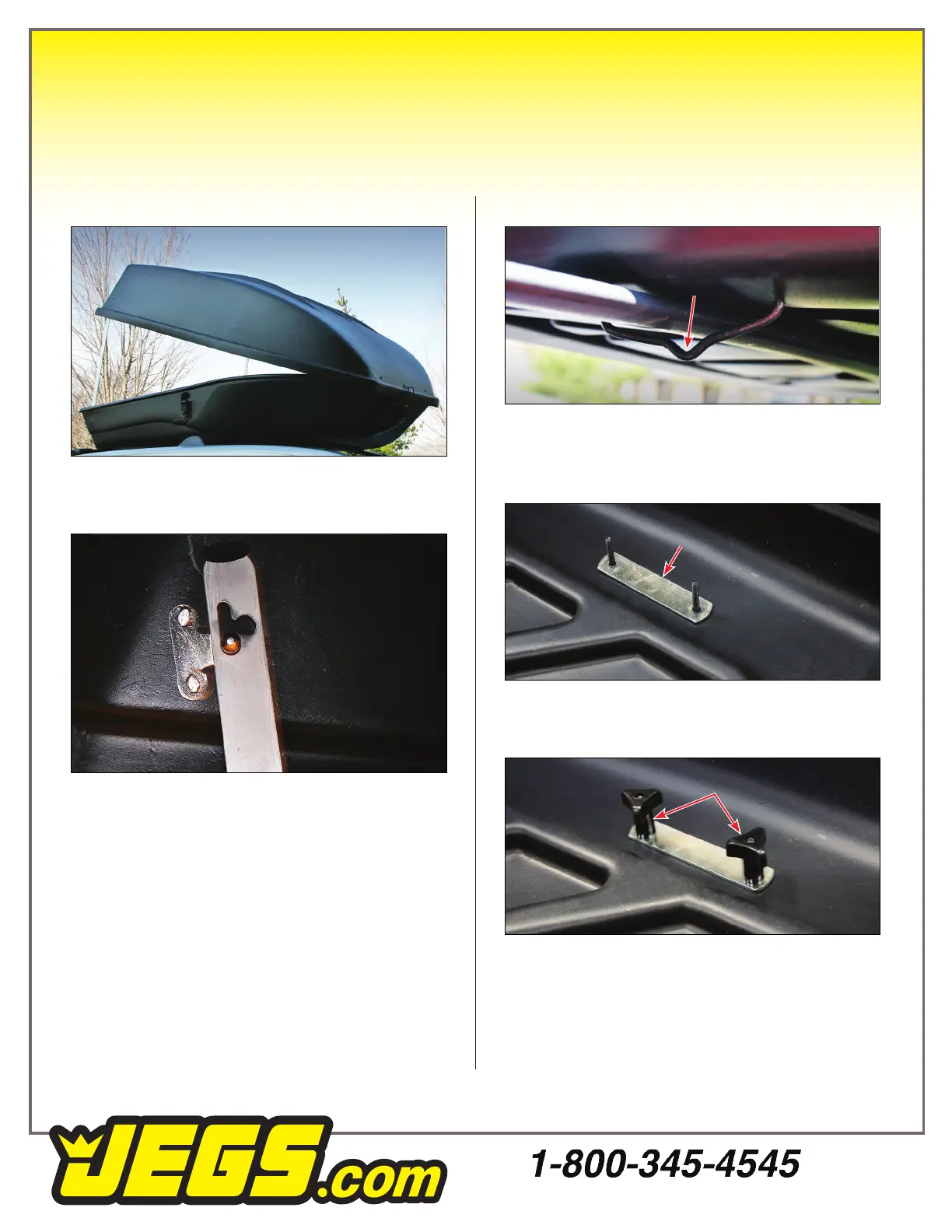

Step 5 Step 6
Lift the back of the cargo carrier lid to approximately
30° as shown above.
Place the mounting bracket (#5) through the pre-
drilled holes from below the vehicle cross rails as
shown above.
Raise the two uprights and place into the locked
position on the bracket as shown.
Then slide the mounting plate (#4) over the threaded
posts inside the cargo carrier.
Thread 2 knobs (#3) evenly and loosely – do not
tighten all the way at this point. Repeat steps until
all 4 mounting brackets (#5), all 4 mounting plates
(#4) are in place and the 8 knobs are loosely in place.
Make sure cargo carrier is centered on vehicle. Then
tighten all 8 knobs evenly and securely.
Mounting Bracket
Mounting Plate
Knobs
To Next Page
