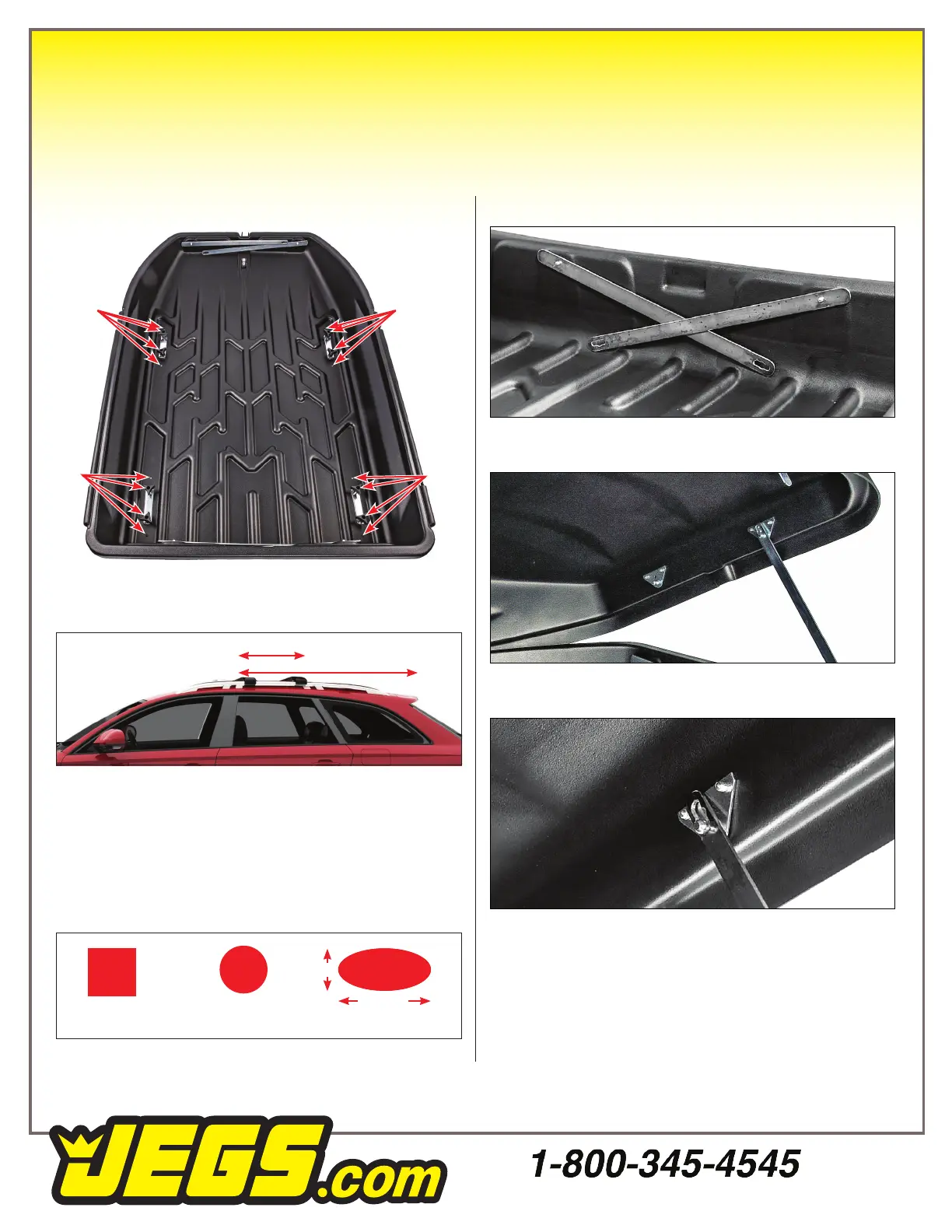

Installation Cont.
6
Step 4 Cont. Step 5
Use closest upright to open side.
Use ball stud closest to opening side.
Locked position.
Open the cargo carrier and raise the upright on each
end into the locked position, front and rear. Be sure
to use the closest upright and position it into the
closest bracket on the open side.
Be sure to align the mounting holes in the bottom
box on each side of the cross rails.
1. Crossbar Spread
• Requires a crossbar spread of 24 in.
2. Rear Hatch Clearance
•
For hatch to open fully with the carrier installed,
there must be at least 35 in. between the front
crossbar and the line where roof and hatch meet.
1
2
Compatible crossbar styles (Maximum dimensions)
Square Round Aero
3
3
/
4
in.
1
3
/
16
in.
