Installation Cont.
7
Step 7

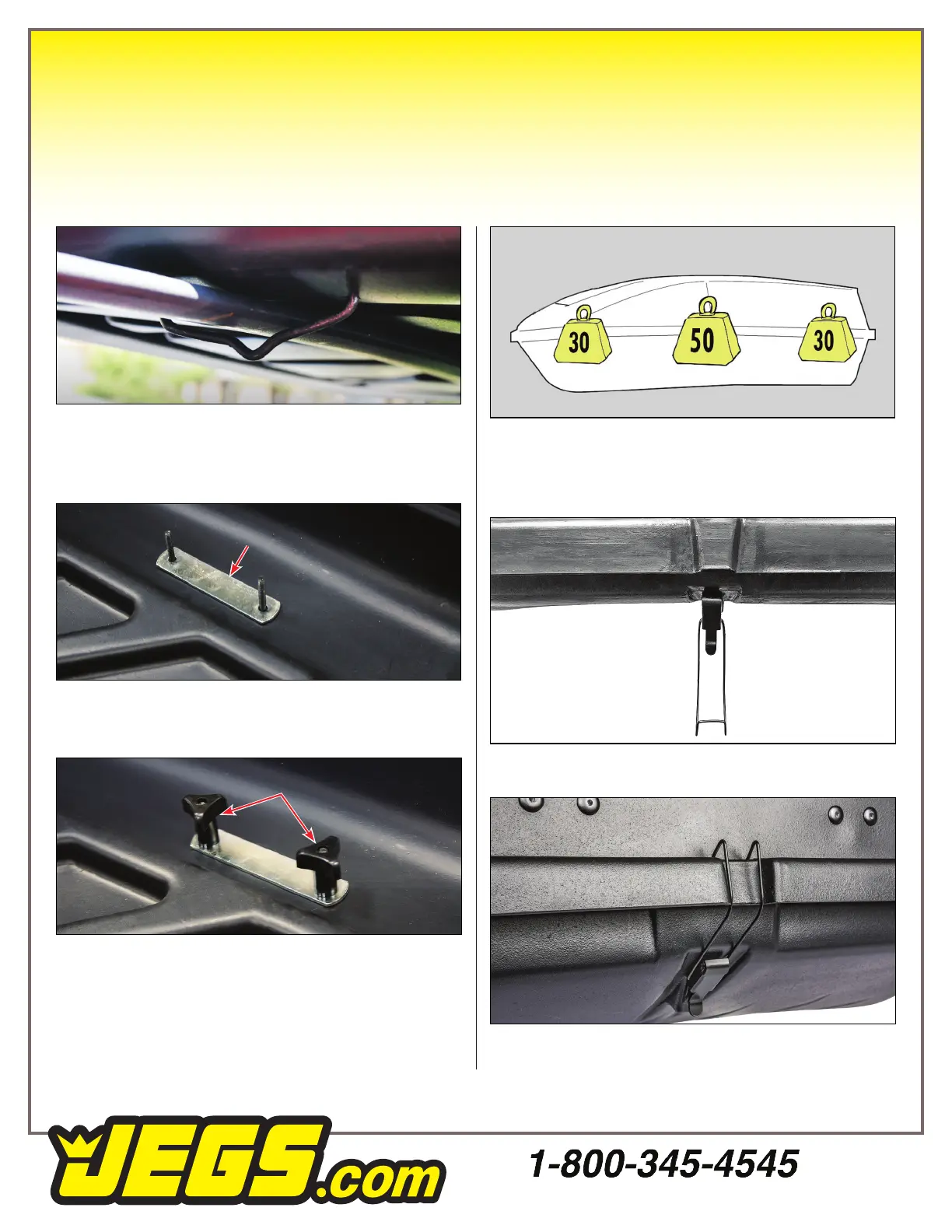

Load cargo carrier paying careful attention to
distribute the weight evenly and not exceed
the maximum allowed weight of the box or cross rails.
Open the bale latch.
Place bale latch into closed and locked position.
Step 6
Place the mounting bracket (#5) through the pre-
drilled holes from below the vehicle cross rails as
shown above.
Then slide the mounting plate (#4) over the threaded
posts inside the cargo carrier.
Thread 2 knobs (#3) evenly and loosely – do not
tighten all the way at this point. Repeat steps until
all 4 mounting brackets (#5), all 4 mounting plates
(#4) are in place and the 8 knobs are loosely in place.
Make sure cargo carrier is centered on vehicle. Then
tighten all 8 knobs evenly and securely.
Mounting Bracket
Mounting Plate
Knobs
