Jensen MPR419Q - Wiring Diagram; Wiring Tips

3
3
OPERATIONMPR419Q

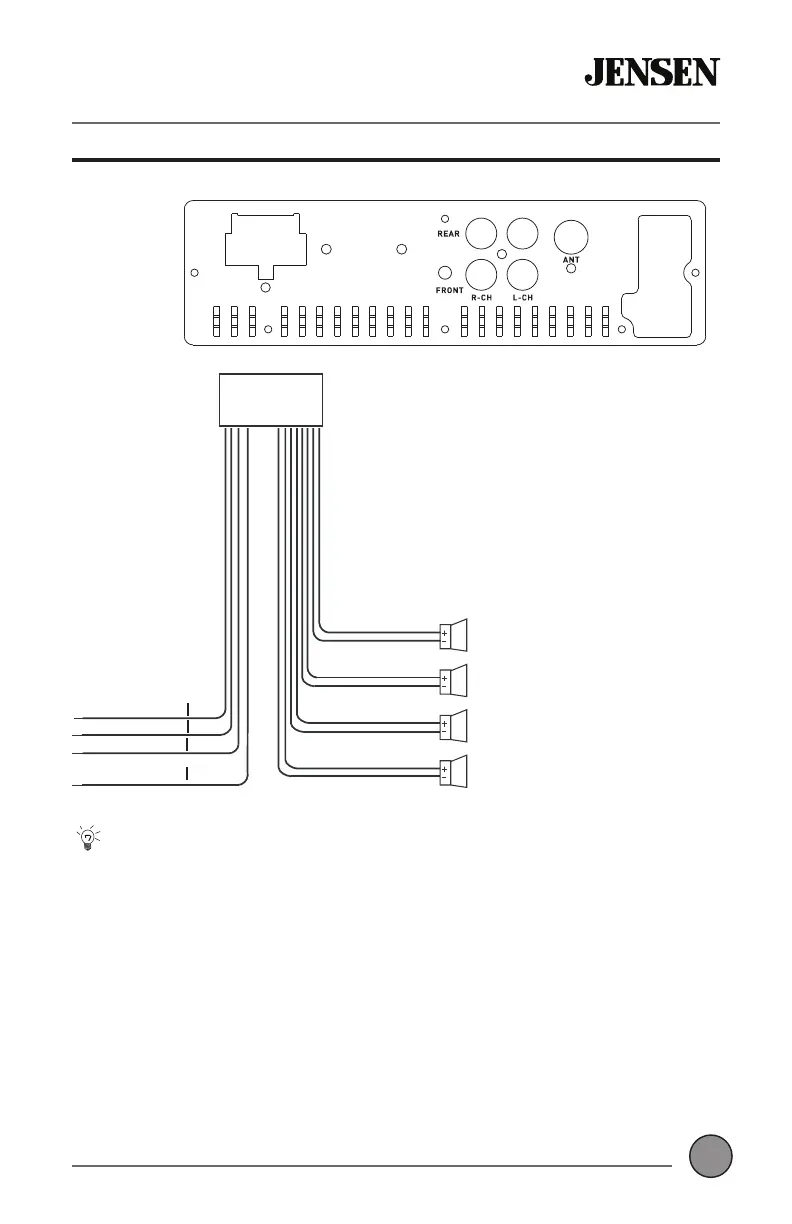

Wiring DIagram
Tips
When replacing a fuse, make sure to use the correct type and amperage.
Using an incorrect fuse could cause damage. The unit uses (1) 10 amp ATC
fuse located on the wiring harness.
IGNITION / ACC 12V(+) RED
BATTERY 12V (+) YELLOW
CHASSIS GROUND (-) BLACK
REMOTE TURN-ON(+)
POWER ANTENNA (+)
DARK BLUE
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
GREEN/BLACK
VIOLET
VIOLET/BLACK
FRONT LEFT SPEAKER
FRONT RIGHT SPEAKER
REAR LEFT SPEAKER
REAR RIGHT SPEAKER
