PS260 / PS285 / PS2130 / PS2180
14

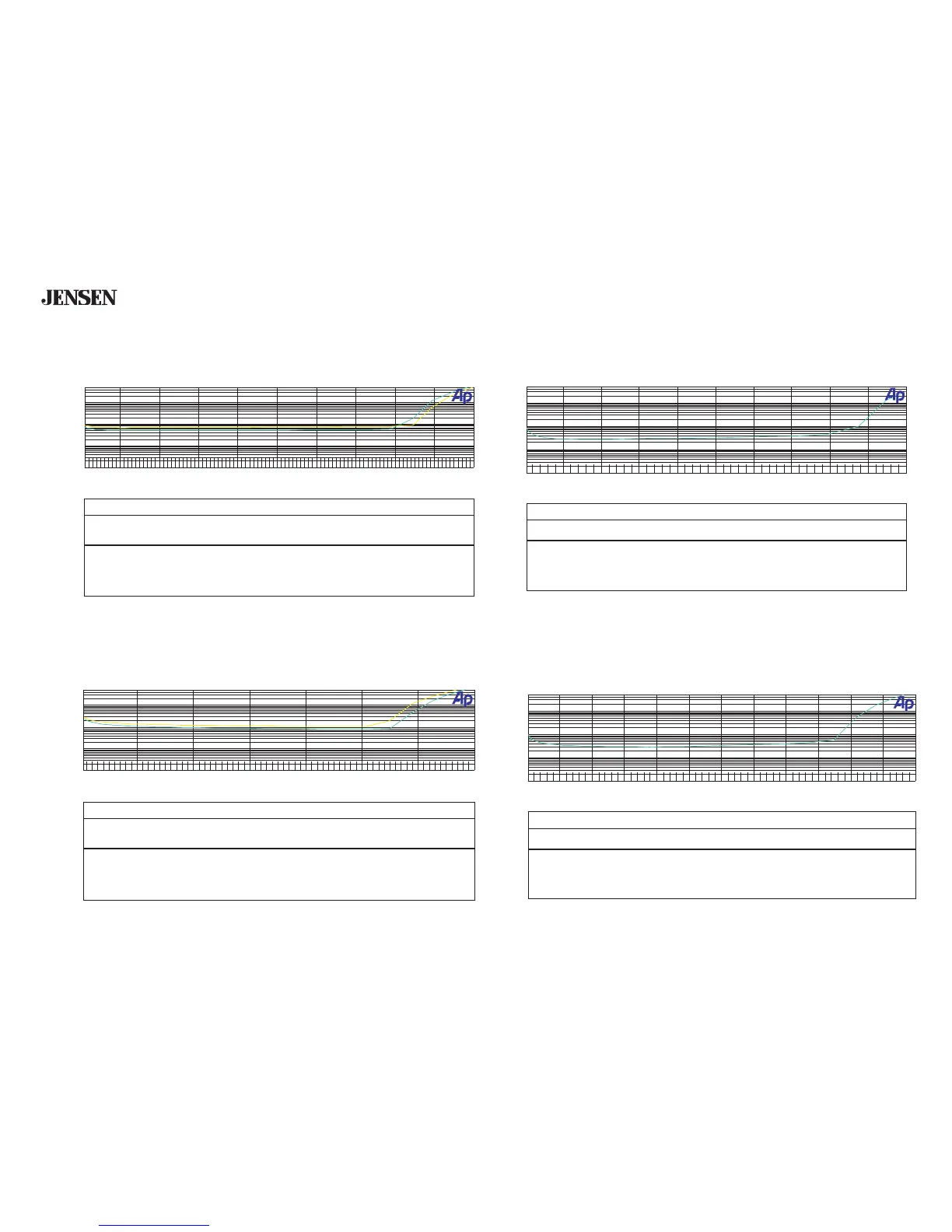

Audio Precision THD+N vs. Power
19 Jensen THD+N vs Power @ 2-ohm_stereo.at1
Color Line Style Thick Data Axis
Cyan Solid 1 Anlr.THD+N Ratio Left
Yellow Solid 1 Anlr.THD+N Ratio Left
Power output - Rated power/2-ohm load.
All channels driven.
Left and Right channel.
1kHz tone.
0.001
5
0.01
0.1
1
%
10 10020 30 40 50 60 70 80 90
W
Audio Precision THD+N vs. Power
21 Jensen THD+N vs Power @ 4-ohm_bridged mono.at1
Color Line Style Thick Data Axis
Cyan Solid 1 Anlr.THD+N Ratio Left
Power output - Rated power/4-ohm load.
All channels driven.
Bridged mono.
1kHz tone.
0.001
5
0.01
0.1
1
%
20 20040 60 80 100 120 140 160 180
W
Audio Precision THD+N vs. Power
19 Jensen THD+N vs Power @ 2-ohm_stereo.at1
Color Line Style Thick Data Axis
Cyan Solid 1 Anlr.THD+N Ratio Left
Yellow Solid 1 Anlr.THD+N Ratio Left
Power output - Rated power/2-ohm load.
All channels driven.
Left and Right channel.
1kHz tone.
0.001
5
0.01
0.1
1
%
20 14040 60 80 100 120
W
Audio Precision THD+N vs. Power
21 Jensen THD+N vs Power @ 4-ohm_bridged mono.at1
Color Line Style Thick Data Axis
Cyan Solid 1 Anlr.THD+N Ratio Left
Power output - Rated power/4-ohm load.
All channels driven.
Bridged mono.
1kHz tone.
0.001
5
0.01
0.1
1
%
25 30050 75 100 125 150 175 200 225 250 275
W
PS260
PS285
