Jet 197 User Manual

- - 13 - -
Jet Inc. 750 Alpha Drive Cleveland, OH 44143 www.jetincorp.com 800.321.6960
QA-SAL-132 REV 7/31/2013

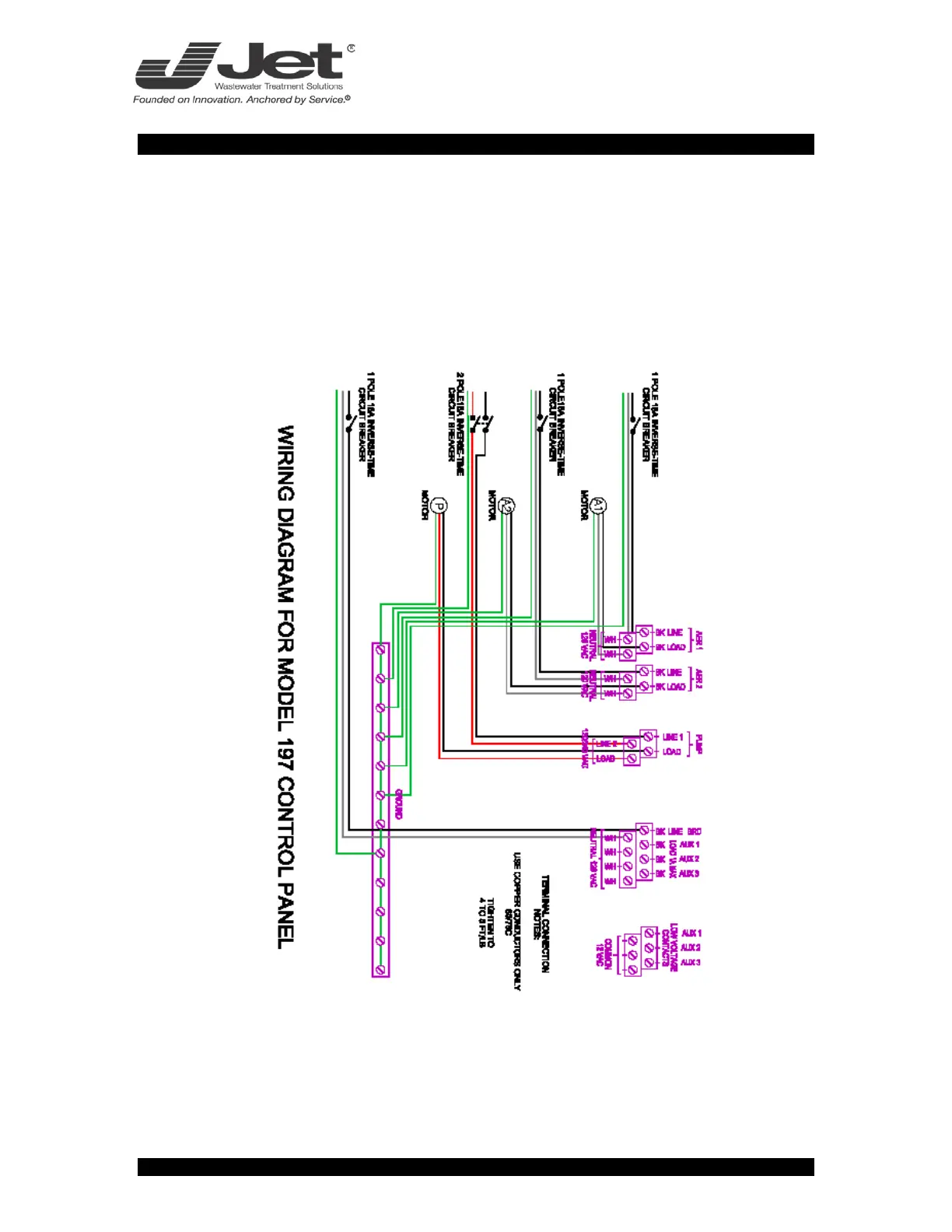

Electrical Wiring Diagram
Refer to the wiring diagram below when connecting aerators, compressors,
pumps, and auxiliary equipment to the Jet model 197 control panels. (Note: The
location of the terminal blocks has been re-formatted for this manual and does
not exactly correspond to the location of the terminal blocks on the circuit board)

Jet 197 Specifications

General

Brand	Jet
Model	197
Category	Control Panel
Language	English
