5.0 Unpacking
Separate all parts from the packing material. Check each part against the Contents of the Shipping
Container and make certain that all items are accounted for before discarding any packing material.
5.1 Contents of shipping container
1 Bench Grinder (not shown)
1 Hardware package (contents below)
1 Operating Instructions and Parts Manual
1 Product Registration Card
Hardware
1 ea Spark Guard – Left (A)
2 ea Lock Knob (B)
1 ea Spark Guard – Right (C)
1 ea Eye Shield Bracket – Left (D)
1 ea Eye Shield Bracket – Right (F)
2 ea Eye Shield Plate (G)
4 ea M8x20 Hex Cap Screw (H)
4 ea 8mm Flat Washer (J)
4 ea M5x10 Pan Head Screw (K)
4 ea M6x12 Hex Cap Screw (L)
6 ea 6mm Flat Washer (M)
2 ea 6mm Lock Washer (N)
1 ea Tool Rest – Left (O)
1 ea Tool Rest – Right (P)
2 ea Eye Shields (Q)
5.2 Tools Required for Assembly
10mm and 12mm Wrenches
No. 1 or No. 2 Cross Point Screwdriver

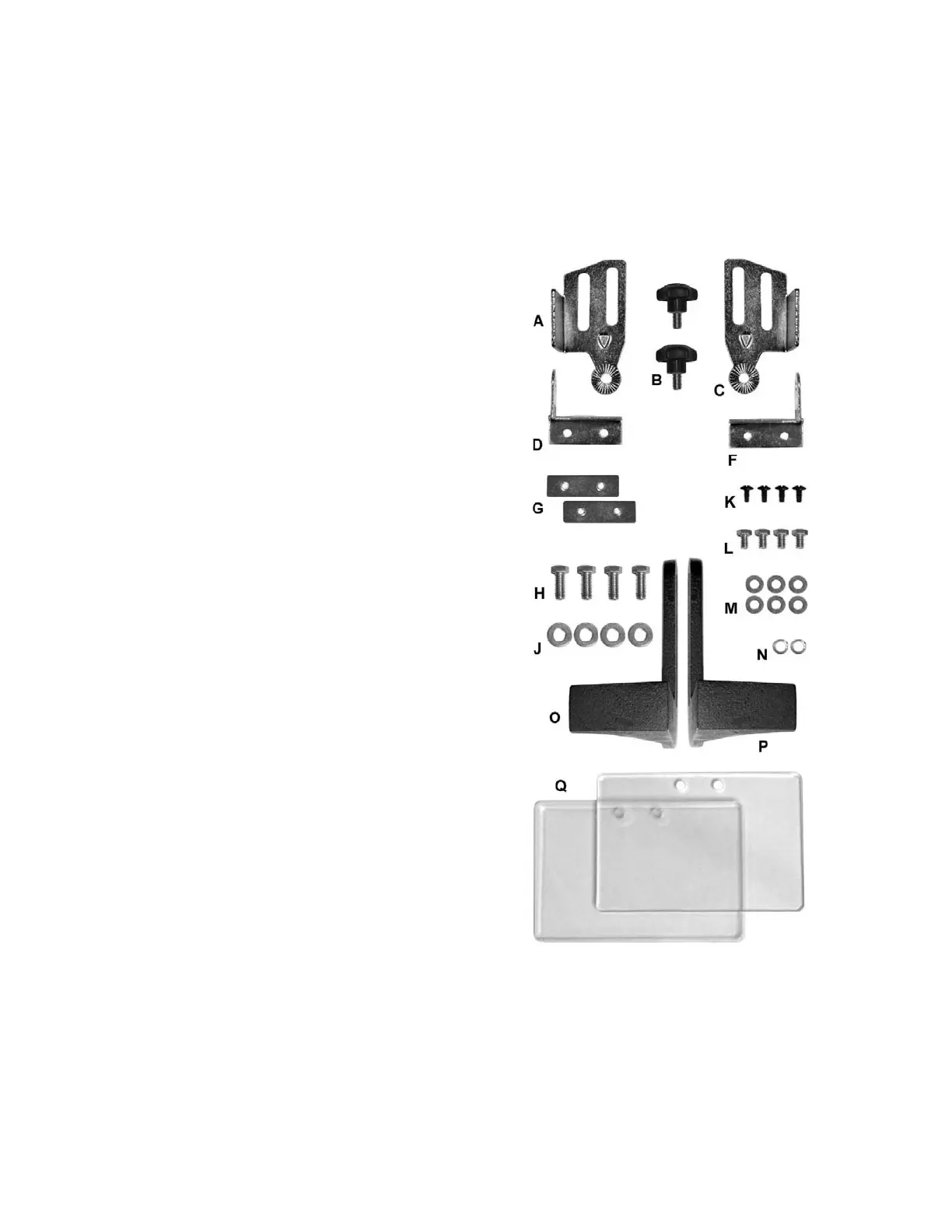

Figure: Hardware
