6

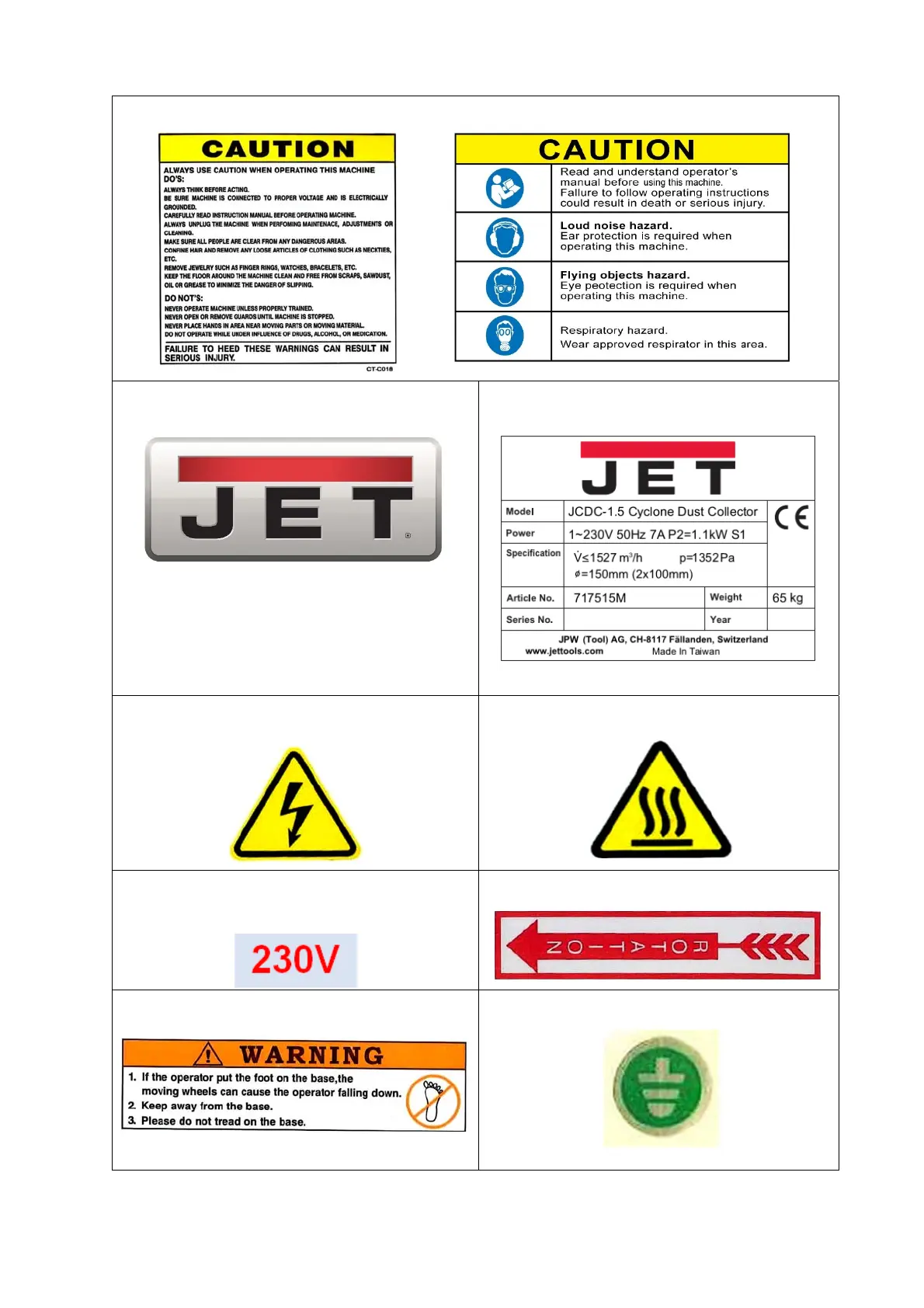

2.0 Direction / Safety Label
Figure 1 Shows the general saftey rules to operate this machine
Figure 2 Product Brand Logo Figure 3 Machine ID label : Shows the machine’s
specifications and series number
Figure 4 Warns user of hazardous voltage, and
should be open up by
trained personnel
only.
Figure 5 Warns user of heated hot surface
hazard
Figure 6 Indicate the main electrical power
supply wire’s location, and the label itself.
Figure 7 Motor & Fan Rotation Direction
Figure 8 Notice the operator do not put the foot
on the base.
Figure 9 Grounding Notice
