Jet JCDC-1.5 Operating Instructions

9
Read and understand the entire
contents of this manual before attempting assembly
or operation. Failure to comply may cause serious
injury.
4.0 Setup and assembly
4.1 Unpacking and cleanup
Remove all contents from shipping carton and
compare to the contents list in this manual. If shipping
damage or any part shortages are identified, contact
your distributor. Do not discard carton or packing
material until dust collector is assembled and running
satisfactorily.
4.2 Shipping contents – JCDC-1.5
Main carton (see Figure 1)
1 Main housing – A
1 Funnel – B
1 Base – C
1 Left stand – D
1
1 Right stand – D
2
1 Canister filter (with bag clamp) – E
1 Drum – F
1 Funnel clamp – G
1 Drum lid – H
1 Inlet adaptor – I
1 Hose – J
2 Hose clamp 10-1/2in. – K
8 Casters – L
2 Side cap – M
1 Handle – N
1 Canister collection bag – O
1 Drum collection bag – P
2 Quick lever – Q
1 Inner bag frame – R
(consists of 3 long supports, 3 short supports,
and 2 hoops)
1 Stand support – S
1 Foam tape, 490 mm – T
2 Foam tape, 810 mm – U
1 Foam tape, 1265 mm – V
1 Gasket – W
1 Remote controller with battery (not shown)
Hardware package (p/n JCDC1.5-HP)
(see Figure 2)
1 Phillips pan head screw, 3/16x3/8 – HP1
6 Flange head screw, 5/16x1/2 – HP2
8 Phillips pan head screw, M5x8 – HP3
4 Flange head screw, 1/4x1/2 – HP4
1 Open-end wrench, 10/12mm – HP5
1 Hex wrench 4mm – HP6
1 Hex wrench 5mm – HP7
12 Flange head screw, 5/16x3/4 – HP8
6 Nut 5/16 – HP9
12 Phillips pan head screw, M3x12 – HP10
12 Hex nut M3 – HP11

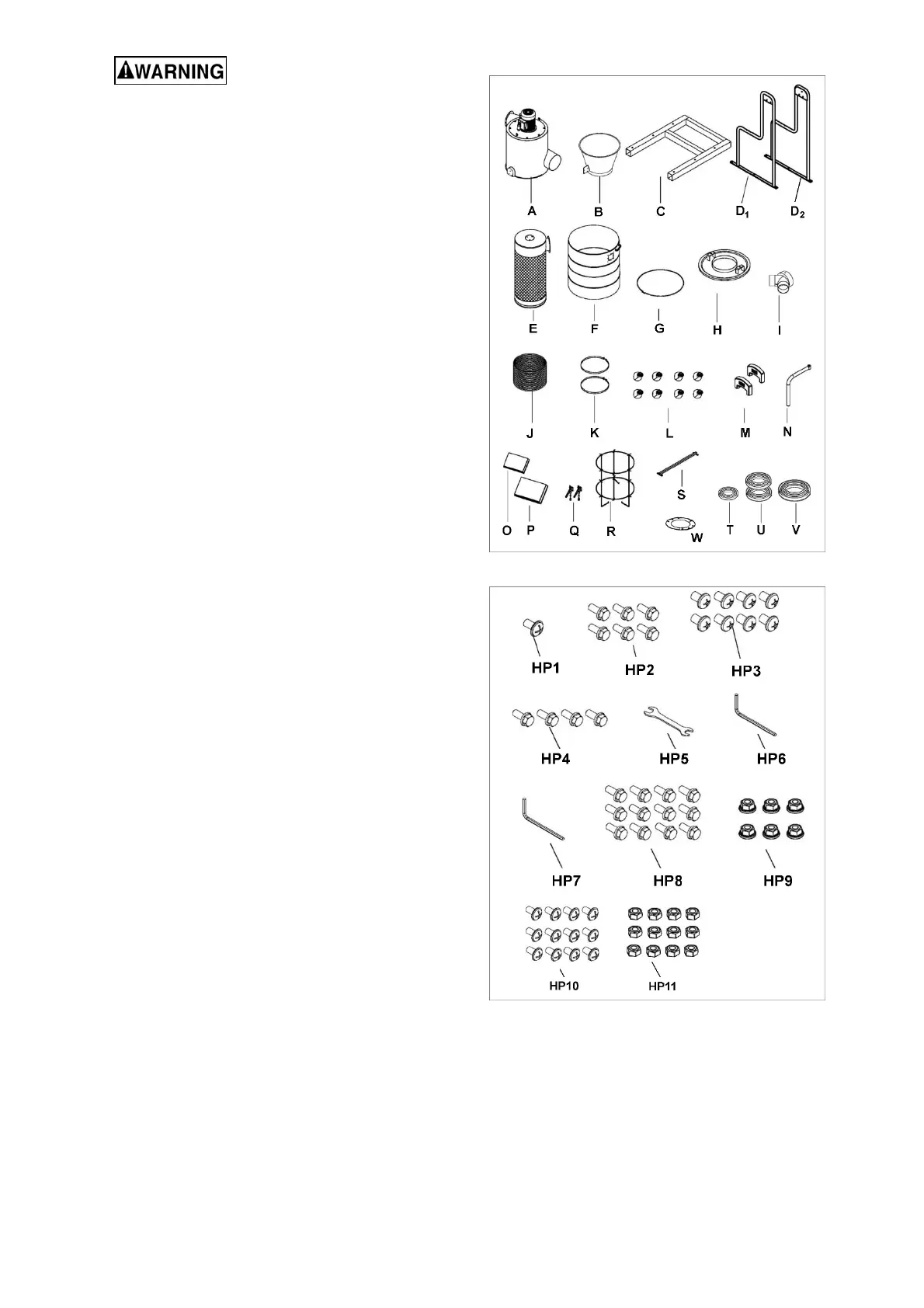

Figure 1: main carton contents (not to scale)
Figure 2: hardware package (not to scale)
