11
Improper connection of the
equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified
electrician or service person if you are in doubt
as to whether the outlet is properly grounded.
Do not modify the plug provided with the
appliance – if it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
The conductor with insulation having an outer
surface that is green with or without yellow stripes is
the equipment-grounding conductor. If repair or
replacement of the electric cord or plug is
necessary, do not connect the equipment-grounding
conductor to a live terminal.
Use only 3-wire extension cords that have 3-prong
grounding plugs and 3-pole receptacles that accept
the tool's plug.
Repair or replace damaged or worn cord
immediately.

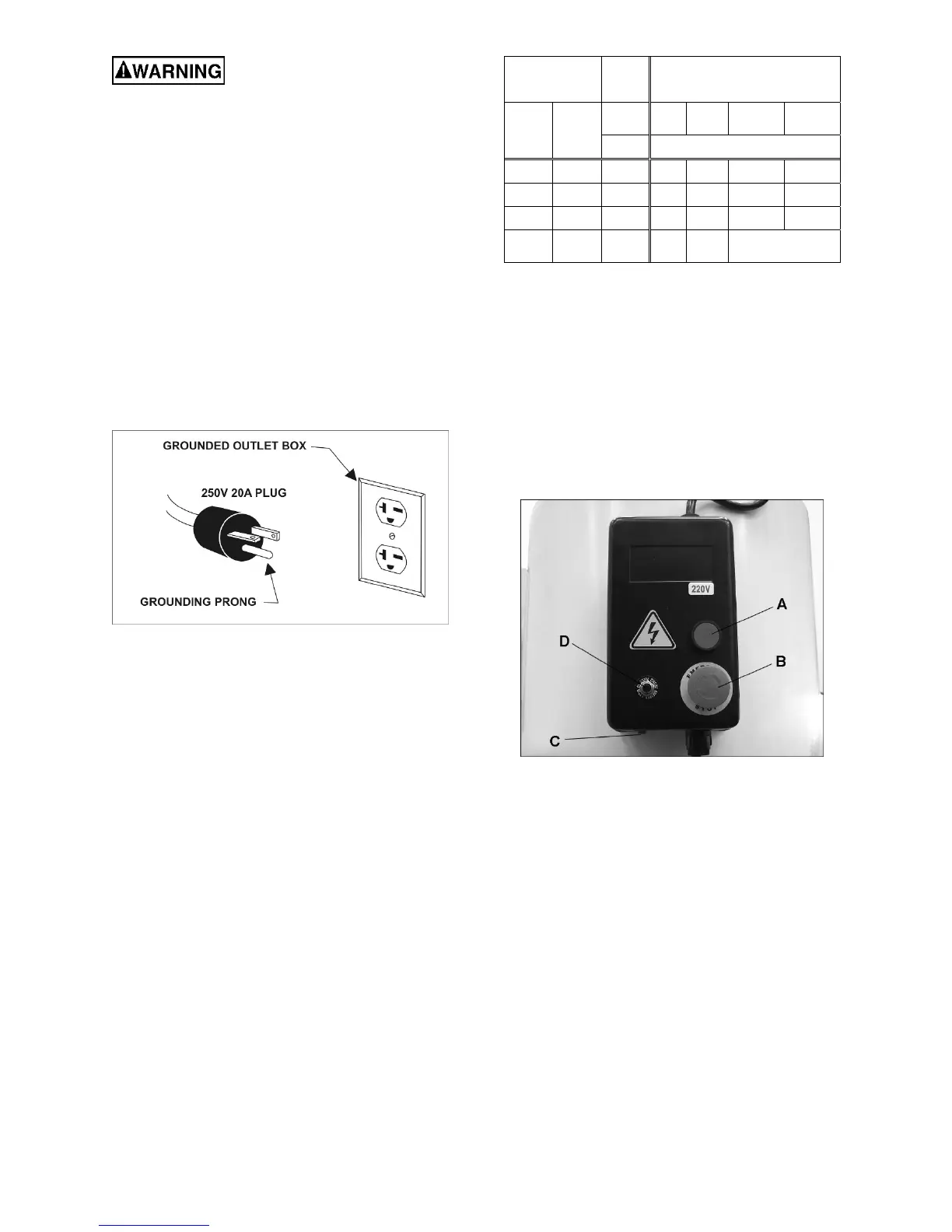

Figure 15
This appliance is intended for use on a circuit having
a nominal rating more than 120 V and is factory-
equipped with a specific electric cord and plug to
permit connection to a proper electric circuit. Make
sure that the appliance is connected to an outlet
having the same configuration as the plug. No
adapter should be used with this appliance. If the
appliance must be reconnected for use on a
different type of electric circuit, the reconnection
should be made by qualified service personnel; and
after reconnection, the appliance should comply
with all local codes and ordinances.
6.2 Extension cords
The use of extension cords is discouraged; try to
position machines near the power source. If an
extension cord is necessary, make sure it is in good
condition. When using an extension cord, be sure to
use one heavy enough to carry the current your
product will draw. An undersized cord will cause a
drop in line voltage resulting in loss of power and
overheating. Table 1 shows correct size to use
depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.
Ampere
Rating
Volts
Total length of
cord in feet
More
Than
Not
More
Than
120
240
25
50
50
100
100
200
150
300
AWG
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12
Not
Recommended
Table 1: Extension cord recommendations
7.0 Operations
7.1 Start/stop
Press green start button (A, Figure 16) to start dust
collector. Press red stop button (B) to stop.
The stop button (B) remains engaged after being
pushed. To restart dust collector, rotate stop button
clockwise to disengage.
Figure 16
7.2 Remote controller
The RF (radio frequency) remote controller operates
on 2 AAA batteries (included). The batteries will
need replacing periodically. The remote controller
has an effective range up to approximately 50 feet
(15 meters).
Press the + or – button to select desired timer
setting: 2, 4, 6 or 8 hours. The dust collector will stop
automatically at end of selected period. For
continuous operation (no timer) select infinity (
4)
position.
