MVario
-5-

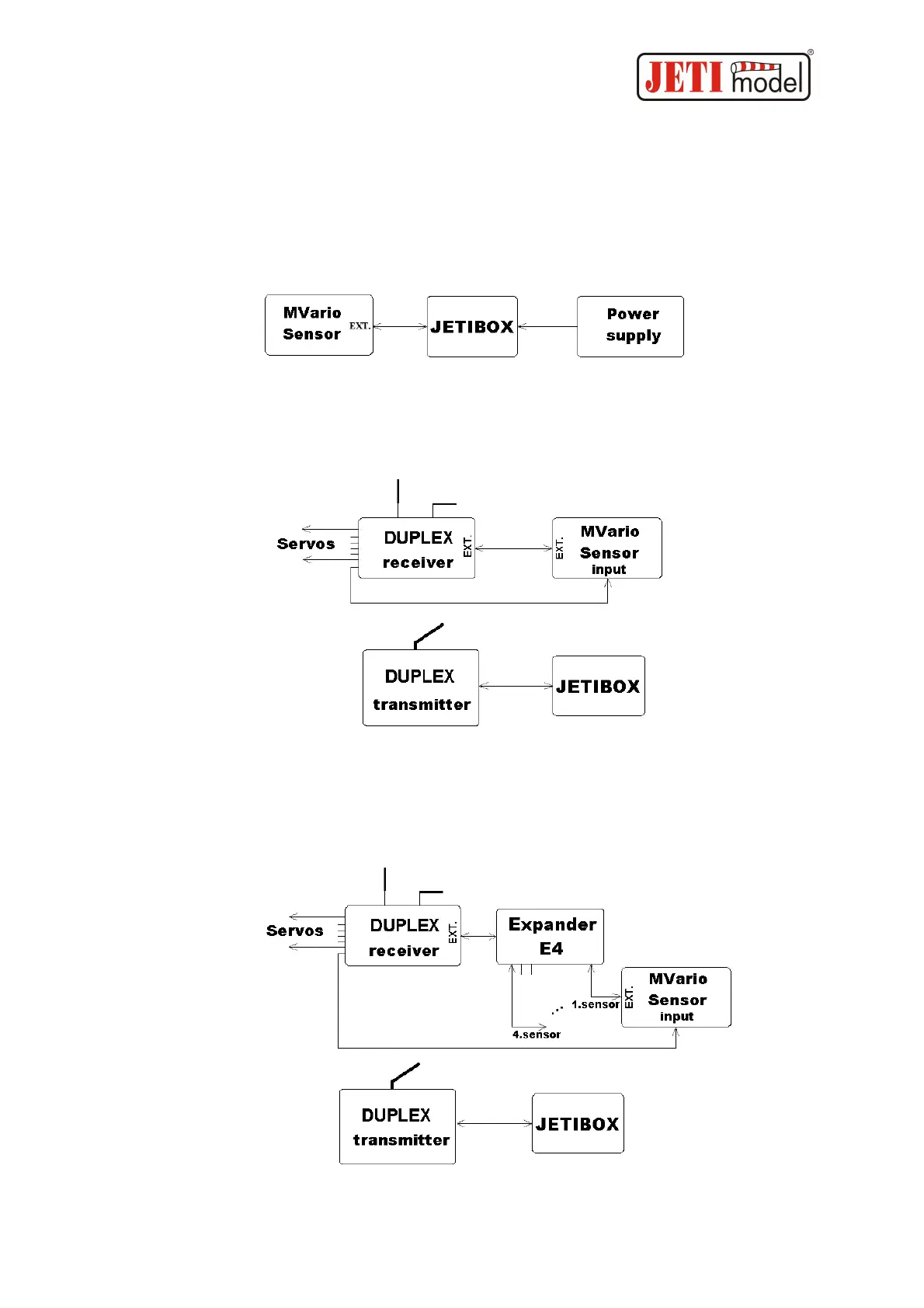

Connetion alternatives of the MVARIO sensor:
1. directly to the JETIBOX. In that case it is mandatory to apply a voltage source of 5
to 8,4V, for instance a receiver battery. The triple core cable with JR plug (black
connector) must be connected to the JETIBOX (to the socket marked impulse, + -).
The triple core cable with JR plug (red socket) is not connected.
2. directly to the receiver input (Ext.). This layout allows connection of one MVario
sensor which obtains its current supply via the receiver. The triple core cable with JR
plug (black socket) must be connected to the DUPLEX receiver (to the input marked
EXT). The triple core cable with JR plug (red socket) is connected to the receiver
channel.
3. Connection via an Expander Ex. This arrangement allows simultaneous data
processing of several sensors (depending on type of expander), current supply of the
sensors is realized via the expander. The triple core cable with JR plug (black socket)
is connected to the expander. The triple core cable with JR plug (red socket) must be
connected to a free receiver channel.
