Jetmaster UNIVERSAL 440 Installation Instructions

MODEL A B C
500U 960 * 1200 525
600U 960 * 1200 525
700 LOW/SH 960 1200 525
700D 960 1200 525
850L 1110 1200 560
1050LL 1310 1350 610
1200 1500 1620 785
1500 1800 1620 810
(*) Measurement may be reduced on request if needed. Please consult The Fireplace Ltd or your nearest agent.
Please note that these dimensions (based on Hebel Block margins) are the absolute minimum sizes - widths (A & C)
maybe increased if desired.
It is important to ensure the Jetmaster firebox is seated on top of the finished floor protector level.
Gather
D
E
C
A
A1
B
F
A2
Y
Front
Back
Gather
MODEL A A1 A2 B C D E F Y
Off-set
Gather
500 500 600 550 350 650 200/300 200 630 325**
-
600 600 700 650 350 650 200/300 200 630 330**
-
700 SH 700 800 750 350 650 200/300 200 630 340**
-
700 SH L 700 800 750 350 600 200/300 200 580 340**
-
700 D 700 800 750 400 700 225/325 200 680 295 395
850 L 850 950 900 450 700 250/350 220 680 322 422
1050 LL 1050 1150 1100 500 700 300/400 240 680 345 445
1200 * 1200 1300 1250 600 1020 400/500 400 1000 435
-
1500 * 1500 1600 1550 600 1020 450/550 410 1000 435
-
B
A
C
Table 1
Table 2
Fig. 2
Fig. 3
Fig. 4
*
Refer to separate detail drawing
** Standard Offset Gather required
Air
Vents
All front
nogs
to be
installed
on edge

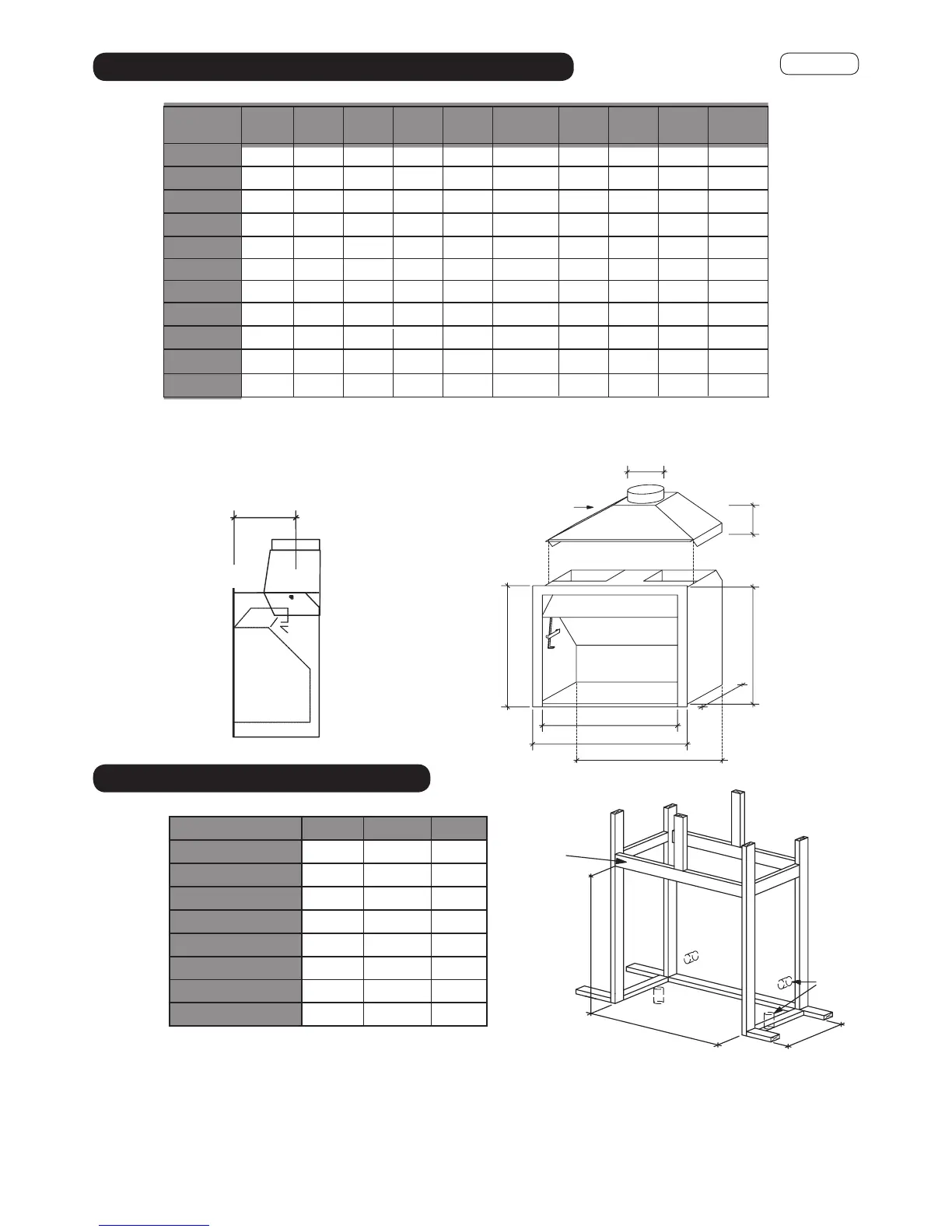

TRIM OUT DIMENSIONS
JETMASTER WOOD BOX DIMENSIONS
5.TW.1B
850 U
850 950 900 450
750
250/350 220 680 322 422
1050 U
1050 1150 1100 500
800
300/400 240 680 345 445
