92

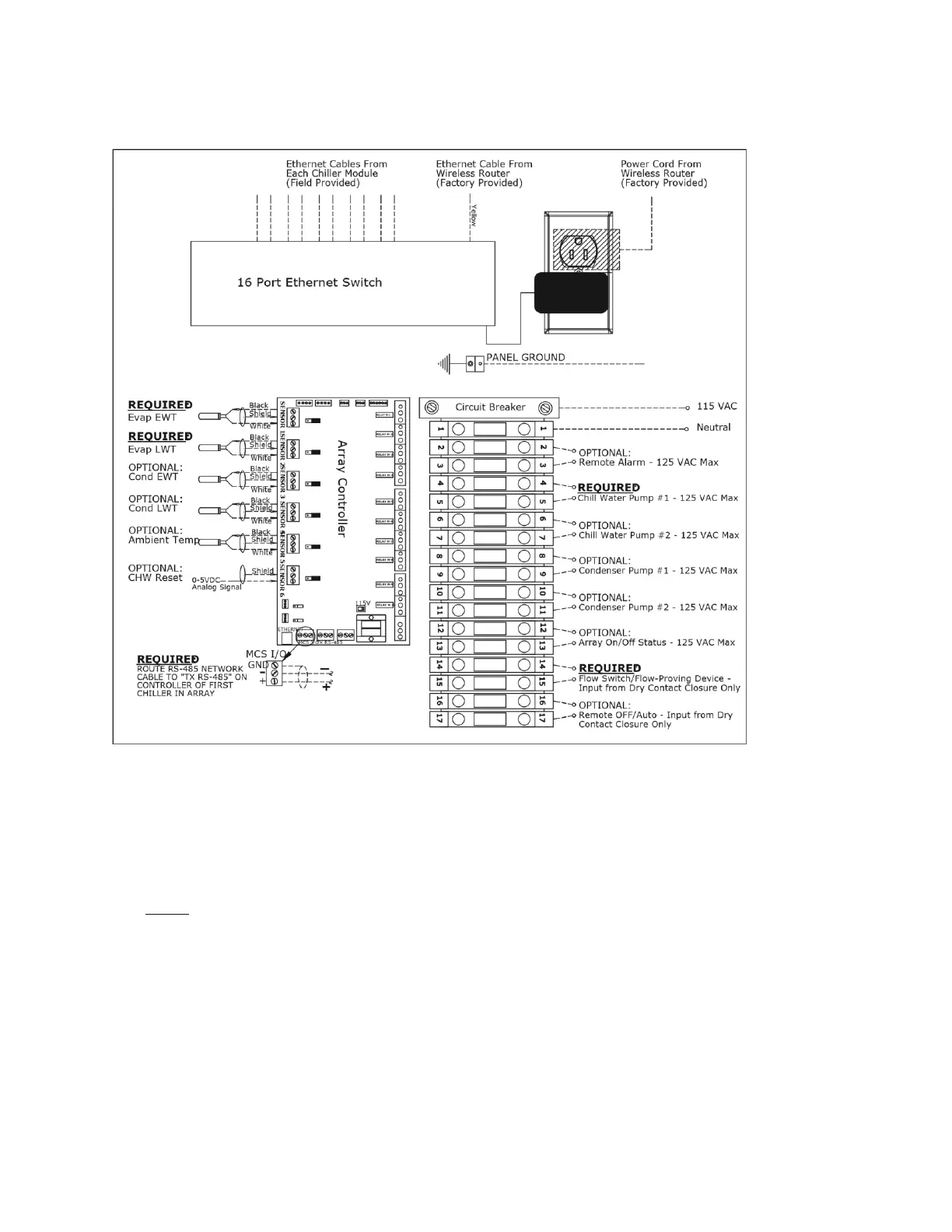

Figure 36. Field wiring – FWCD array with supervisory controller, single circuit modules
WARNING
Hazardous voltage! Disconnect all
electrical power including remote
disconnects before servicing unit.
Follow proper lockout/ tagout
procedures to ensure power cannot
be inadvertently energized. Failure to
do so cause death or serious injury.
CAUTION
Use copper conductors only!
Unit terminals are not designed to
NOTES:
1. All field provided control-circuit
wiring must have a minimum rating
of 150V.
2. All field wiring must be in
accordance with NEC, State & Local
requirements.
3. All field provided ethernet cables
must be Cat 5 or higher ethernet
straight (patch) cables.
4. All field provided RS-485 network
cable must be 24 GA, shielded,
2conductor with drain wire (Belden
9841 or equivalent)
accept other type conductors.
Failure to use copper conductors may
cause equipment damage.
CAUTION
Do not energize the unit until
checkout and start-up procedures
have been completed.
To Next Page
