1.5 Attaching the Seat
1. OPEN THE LATCH ON THE SEAT CLAMP.
2. TWIST THE KNOB COUNTERCLOCKWISE TO WIDEN THE CLAMP OPENING.
3. SLIDE THE SEAT POST INTO THE STEM TUBE, MAKING SURE THAT:
• IT IS INSERTED PAST THE MINIMUM INSERTION MARK ON THE POST SO THAT THE MARK IS NOT VISIBLE.
• THE SEAT SADDLE IS POINTED DIRECTLY FORWARD.

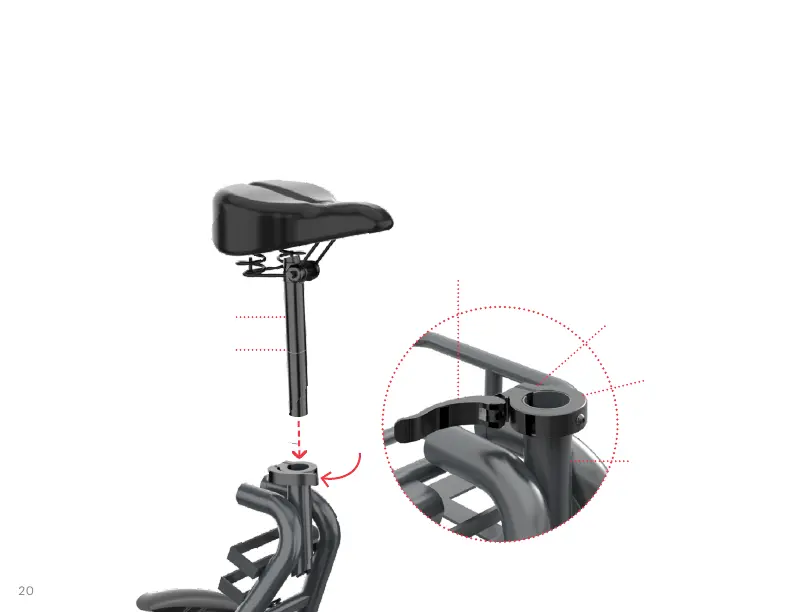

SEAT TUBE
SEAT CLAMP
SEAT CLAMP KNOB
opposite side- not shown
SEAT POST
MINIMUM INSERTION MARK
SEAT CLAMP LATCH
