JETStream JMC-1105 - Step 3: Seat Assembly; Step 4: Component Cable Connections

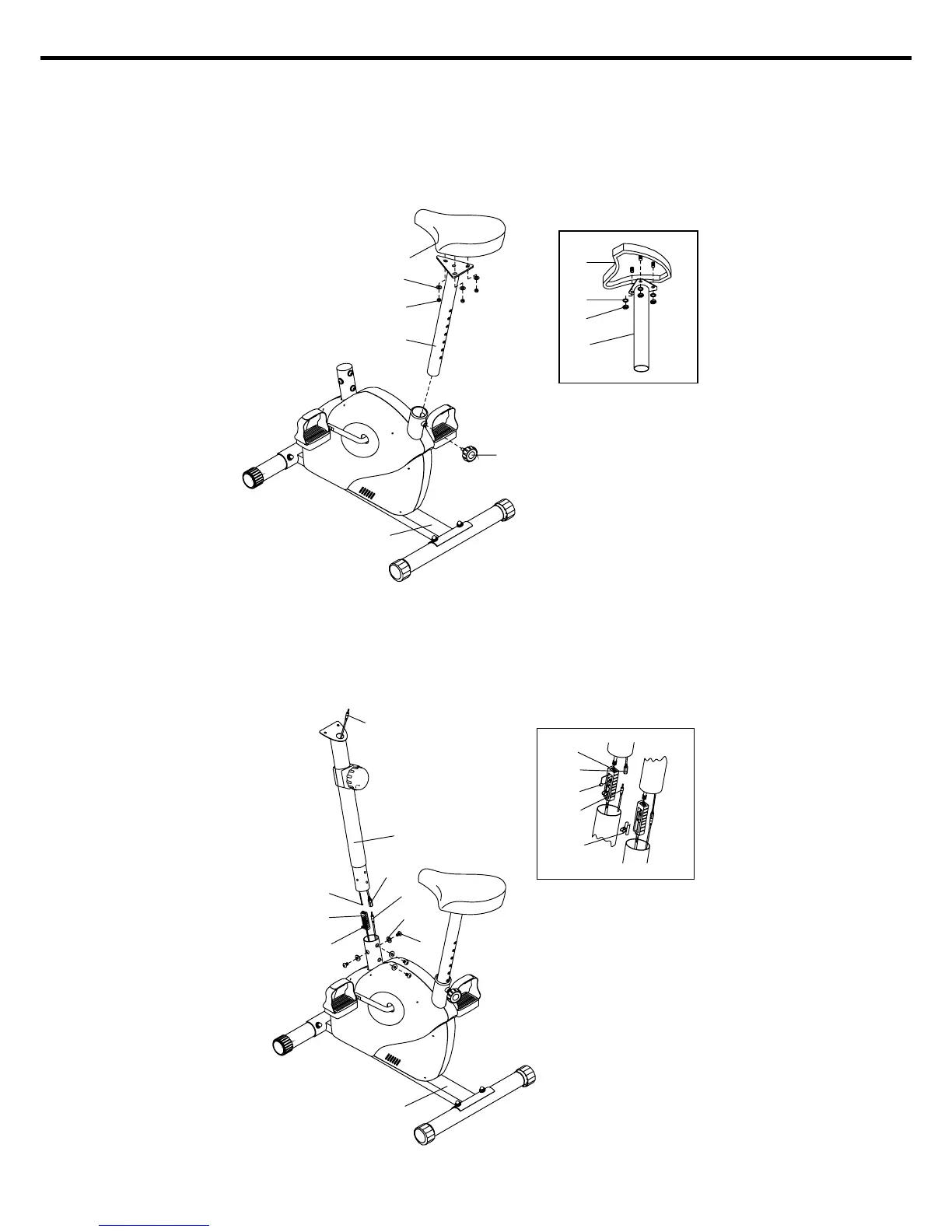

STEP 3.
Attach saddle (08) to seat post (09), fastened with washers (07) and nuts (11). Then attach seat
post (09) to main frame (01). Adjust saddle (08) to desired height and tighten with adjustment
knob (18).
STEP 4.
Connect computer cable low (21) & computer cable up (19), tension control cable up (13) &
tension control cable low (14), then attach handlebar post (12) to main frame (01), fix with
washers (05) and bolts (28).
