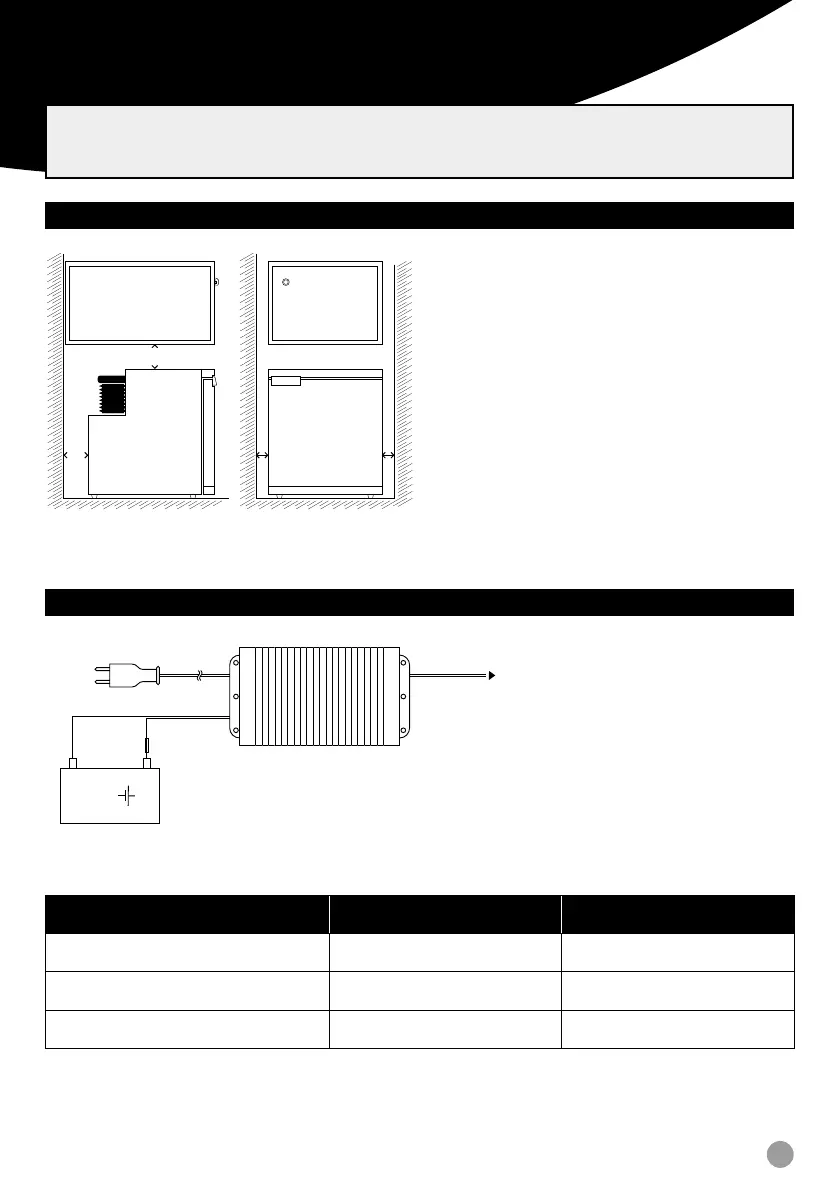

3JKF50 Installation and Operation Guide
1.
Please refer and adhere to the Safety
Instructions prior to installation.
(See page 1)
2. The cabinet into which the fridge will be
sited must allow for adequate ventilation.
The internal dimensions of this should
allow for a minimum of 20mm space at
the rear and top of the refrigerator and
10mm side space. The internal cabinet
dimensions should be 580mm (wide)
730mm (high) 700mm (deep). The fridge
should be kept on level horizontal surface
and away from heat sources.
AIR FLOW AROUND THE APPLIANCE
WIRING
3. Connect to the vehicle
12/24VDC system directly.
20mm
20mm
10mm
10mm
Adhere to cable cross section requirements in relation to length of cable required as above.
rd
bk
to fridge
+
-
rd/bk
10A
12v/24v
Installation
NB: It is highly recommended that the installation of the JKF50 is carried out by an
appropriately qualified person.
Wire length to refrigerator Wire gauge Wire diameter (mm)
Maximum 6m 14AWG 64.1
Maximum 11m 12AWG 80.8
Maximum 17m 10AWG 101.9
