JL Audio C5-650X User Manual

2 | JL Audio - C5-650x Owner’s Manual
A
F
B
G
E
D
C

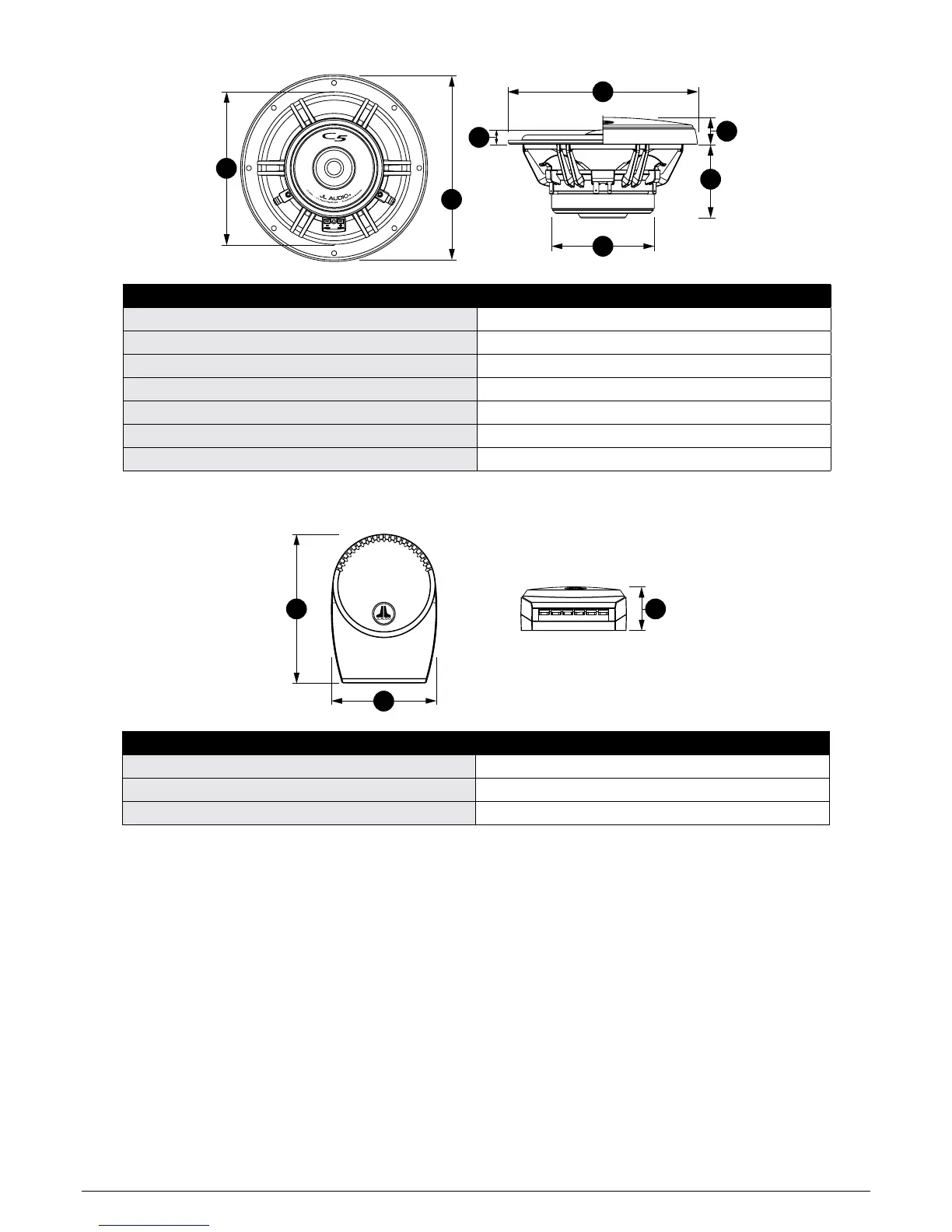

Woofer Physical Dimensions
Frame Outer Diameter (A) 6.52 in. / 165.5 mm
Grille Tray Outer Diameter (B) 6.76 in. / 171.7 mm
Magnet Outer Diameter (C) 3.54 in. / 90.0 mm
Frontal Tweeter Protrusion (D) 0.50 in. / 12.7 mm
Frontal Grille Protrusion (E) 0.98 in. / 24.9 mm
Mounting Hole Diameter (F) 5.56 in. / 141.2 mm
Mounting Depth (G) 2.59 in. / 66.0 mm
C
B
A
Crossover Network Physical Dimensions
Height (A) 4.72 in. / 119.9 mm
Width (B) 3.36 in. / 85.3 mm
Depth (C) 1.44 in. / 36.6 mm

JL Audio C5-650X Specifications

General

Brand	JL Audio
Model	C5-650X
Category	Car Speakers
Language	English
