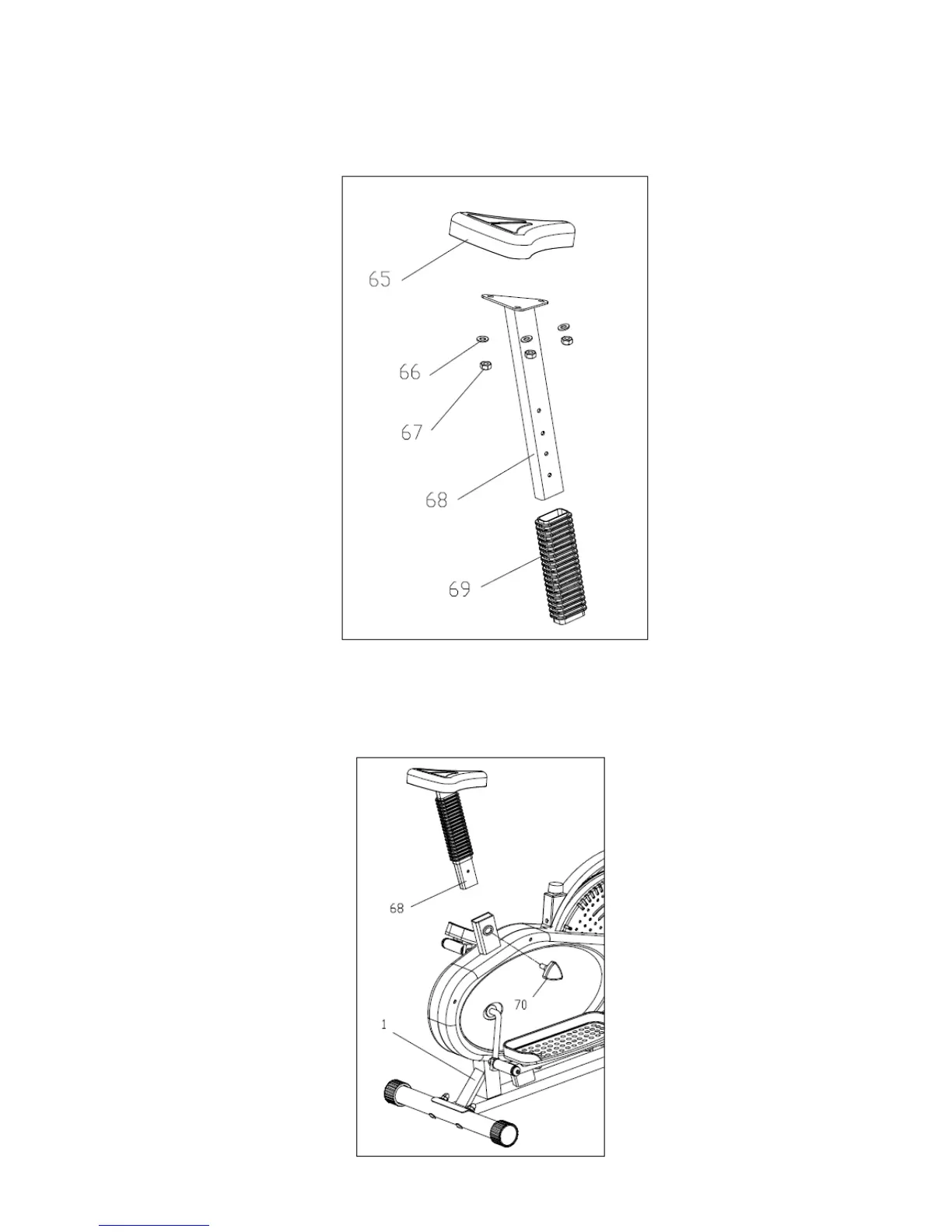

STEP 5:

Tighten the Saddle（65） to the Saddle Post （68）with Nylon nut (67) and Flat washer (66).

And then put the Saddle post tube（69）.

STEP 6:

Insert the Saddle post (68) into the rear tube of Main frame (1), and tighten with Knob (70)

after adjusting to the right position.
