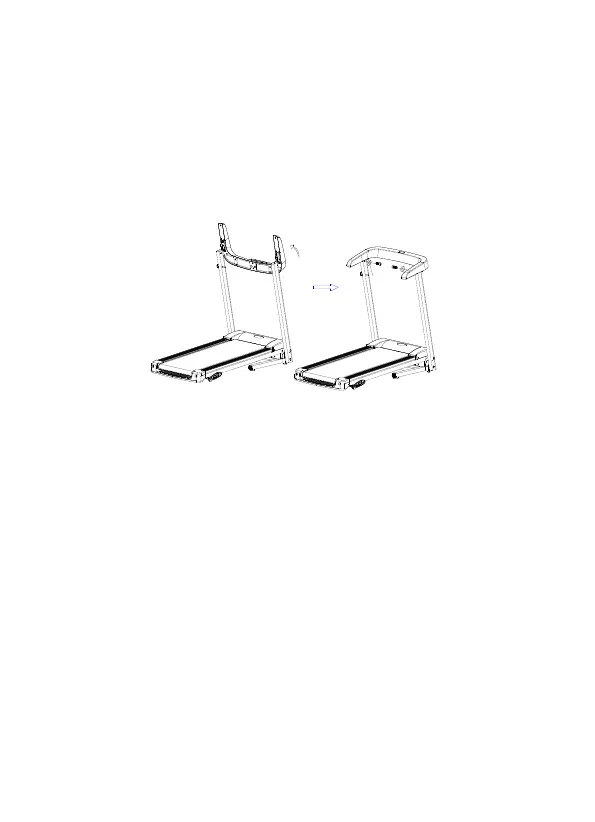

of the electronic meter stand: first fold the electronic meter stand in
the direction of the arrow, and then fix the electronic meter stand on
the column with F#M8*15 screws (2 pieces) and G#M8 pads (2
pieces).
Step 4:a. Electronic meter screen assembly: first connect the signal
lines of the electronic meter, and then put the panel on the electronic
meter as indicated by the direction of the arrow, and then fix it with
E#M5*40 screws (2 pieces).
The red part indicated by the arrow is anti-warping device.In
use,adjust the device according to your own weight to prevent the
base from being upturned.
