John Bean EELS904A - Scissor Assembly Details

17 of 22
DECEMBER 2022 REV. D
EAZ0080V72A

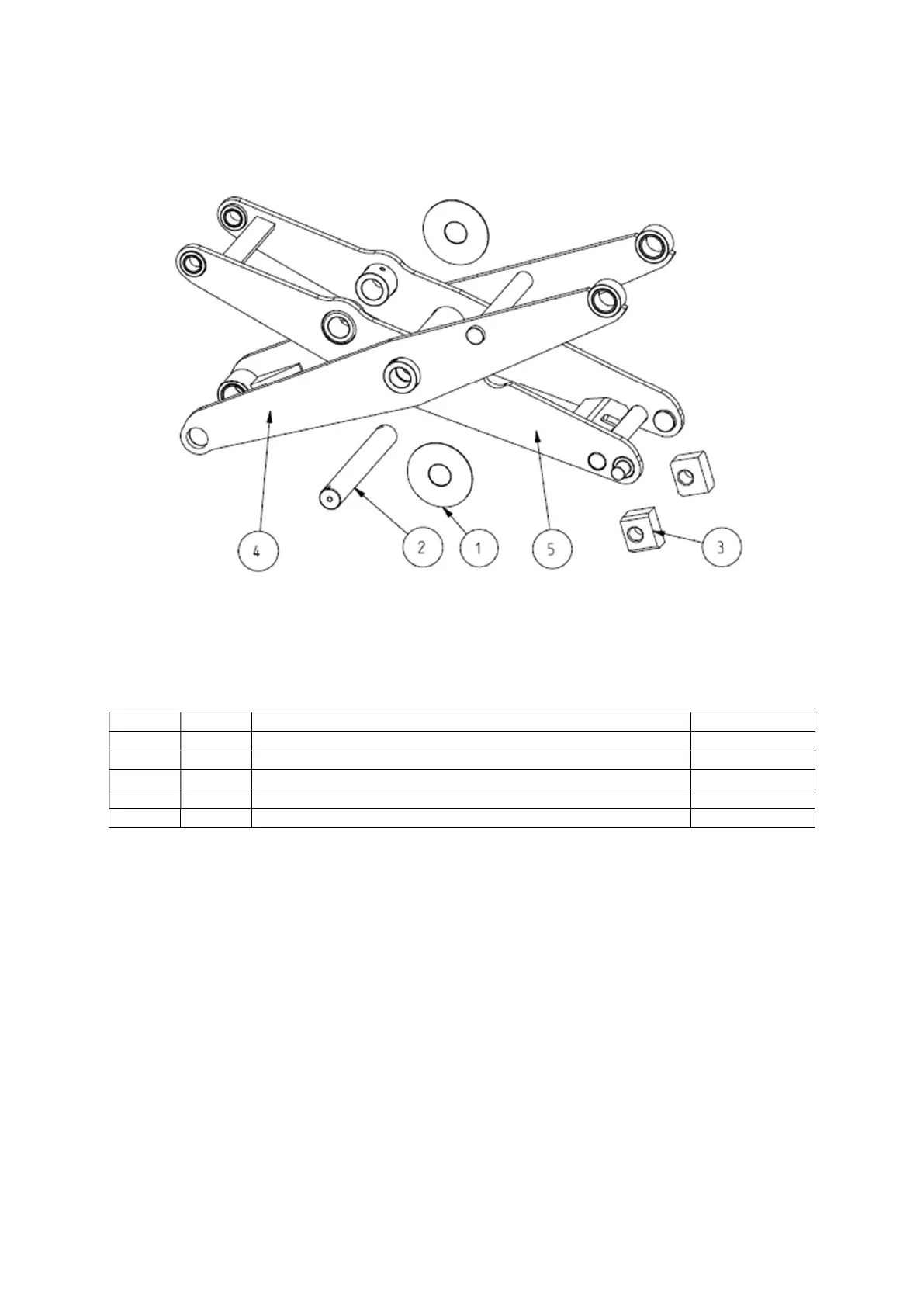

14.0 Jack Beam Assembly: Scissor Exploded View
15.0 Jack Beam Assembly: Scissor Part List
ITEM
QTY.
DESCRIPTION
PART #
1
2
SHIM
–
CENTER PIN
E
AM0194V65A
2
1
PIN
–
SCISSOR CENTER
EAM0194V30A
3
4
NYLON
SLIDE
BLOCK
EAM0194V31A
4
1
SCISSOR OUTER
-
WELDMENT
EAS2242V08A
5
1
SCISSOR INNER
-
WELDMENT
EAS2242V09A
