ANSUL Cartridge Dry Chemical Fire Extinguishers

Models 10, 20, 30, Operation, Inspection, Service and

Maintenance, and Recharge Manual (Form No. F-7674)

2018-OCT-15 REV. 10 PAGE 27

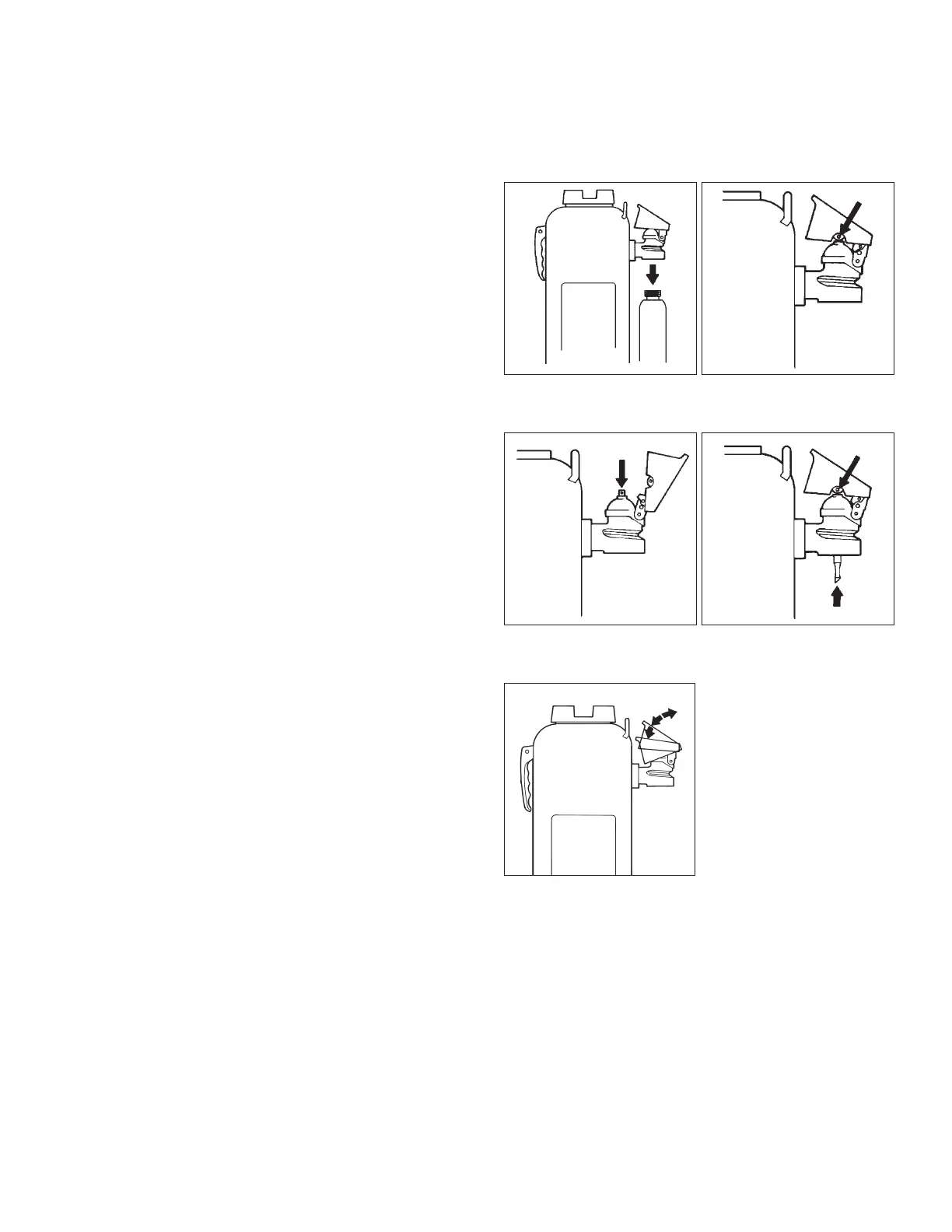

CARTRIDGE RECEIVER PUNCTURE PIN REPLACEMENT

PROCEDURE

1. Ensure cartridge is removed from extinguisher.

2. Remove retaining roll pin from lever as shown.

3. Remove old puncture pin by pushing downward.

4. Install new puncture pin and roll pin in reverse procedure.

5. Ensure the puncture pin travels freely by operating the

lever.

1 003244 2 003245

3 003246 4 003247

5 000910
