ANSUL Cartridge Dry Chemical Fire Extinguishers
Models 10, 20, 30, Operation, Inspection, Service and
Maintenance, and Recharge Manual (Form No. F-7674)
2018-OCT-15 REV. 10 PAGE 29
NAMEPLATE REPLACEMENT
NAMEPLATE REPLACEMENT
If the maintenance nameplate becomes missing or
unreadable, it can be replaced with a replacement nameplate
from Johnson Controls. When using this replacement
plate, the only extinguishers that will retain their UL and
Coast Guard approval will be extinguishers that have been
manufactured since 1993 with the approved collar stamping
on them.
NOTICE
Extinguisher will not retain its FM Global
Approval when using replacement nameplate.

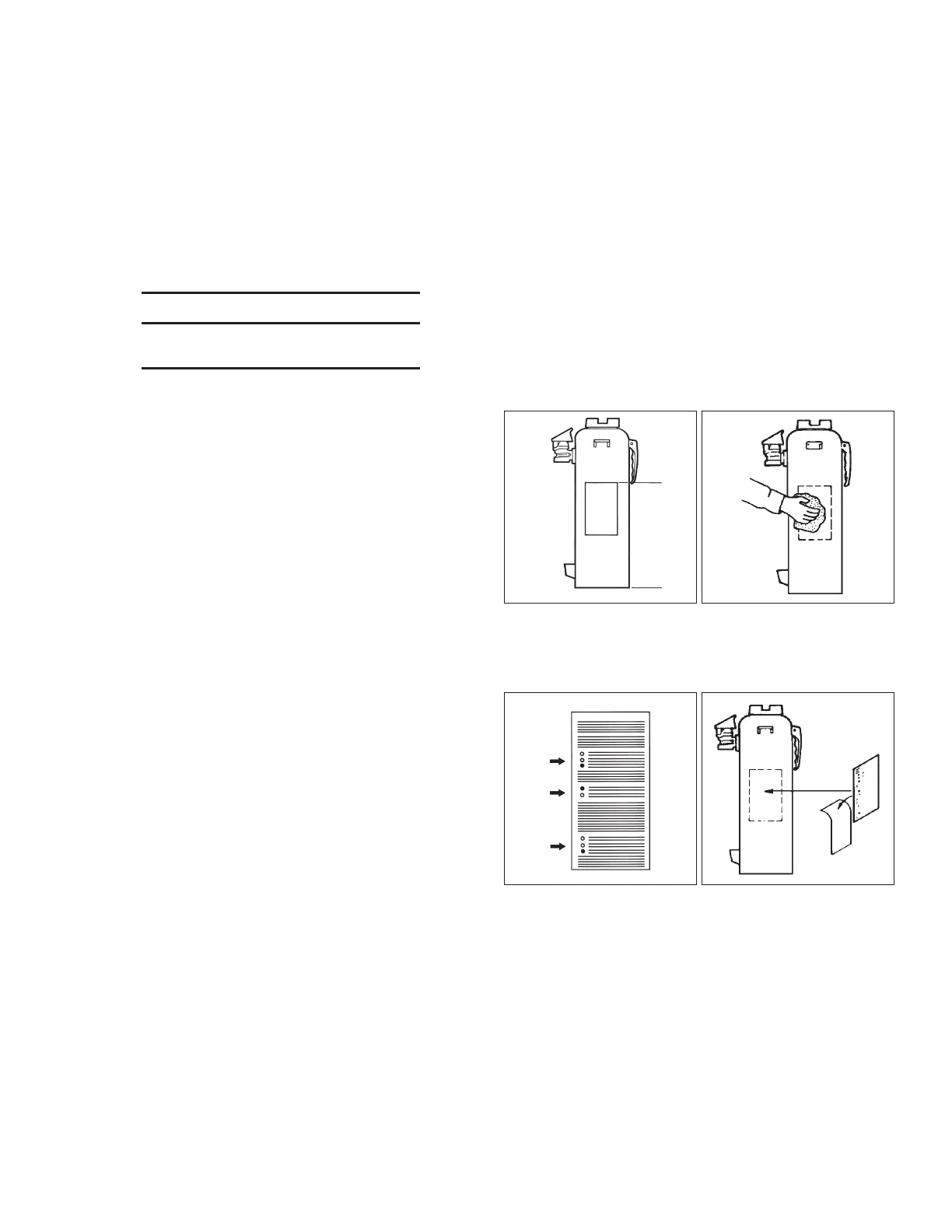

To replace the maintenance nameplate:
1. The replacement nameplate must be positioned on the
backside of the extinguisher. The distance from the top of
the nameplate to the bottom of the extinguisher should be
approximately as follows:
10 lb extinguisher – 11 in. (79 mm)
20 lb extinguisher – 13 in. (330 mm)
30 lb extinguisher – 14 in. (356 mm)
2. Clean the area thoroughly where the new nameplate is
to be applied. Use a mild abrasive (scouring power) or
if necessary, use a stiff wire brush to remove any loose
paint or rust. If rusty, refer to Service and Repair Section
(Suppressing Agent Shell), page 7.
3. Before applying the nameplate to the extinguisher, the
correct fill weight, type of cartridge, and model must be
indicated on the nameplate. This is accomplished by
punching a hole in the correct location.
4. After all holes have been correctly punched, remove the
paper from the back of the nameplate and apply name-
plate in the correct location on the extinguisher. Press it
down firmly.
