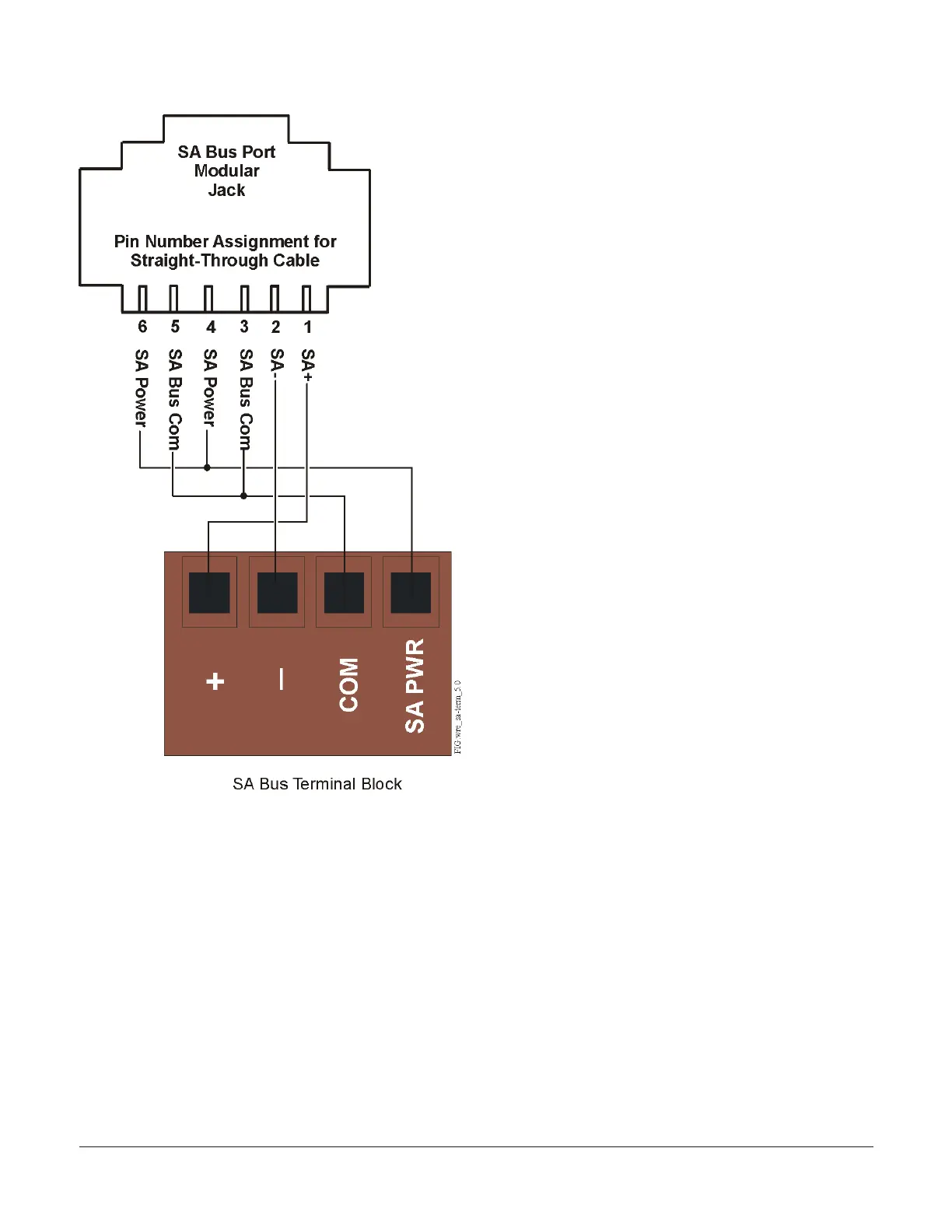

Figure 7: Wiring cable to SA bus terminal block
Setup and Adjustments
Power on the controller
Complete the following steps in order to power on
the controller.
1. Supply power to the controller.
2. Close the panel door of the enclosure.
3. Verify that the display is on and initiating the
startup sequence.
Commissioning
The DIS1710 Local Controller Display does not
require commissioning. Cable connection between
the DIS1710 Local Controller Display and a
commissioned field controller allows for immediate
display function. Ensure that the communication
cable is connected between the display and the
controller. For more information on commissioning,
refer to the Controller Tool Help (LIT-12011147).
Troubleshooting
Refer to the DIS1710 Local Controller Display Technical
Bulletin (LIT-12011270) for information on how to use
and troubleshoot the DIS1710 display.
DIS1710 Local Controller Display Installation Instructions 5
