Hx-68P3 Series Outside Humidity and Temperature Transmitters Installation Instructions2
Installation
Parts Included
• relative humidity and temperature transmitter with
cable gland
• conduit adaptor
• weather shield
• pole mounting clamp with screws (wall mount
screws and anchors not included)
• installation instructions
Tools Needed
• medium Phillips screwdriver
• small slotted screwdriver
• wire cutters
• open-ended wrench
• zip ties
• cable clips

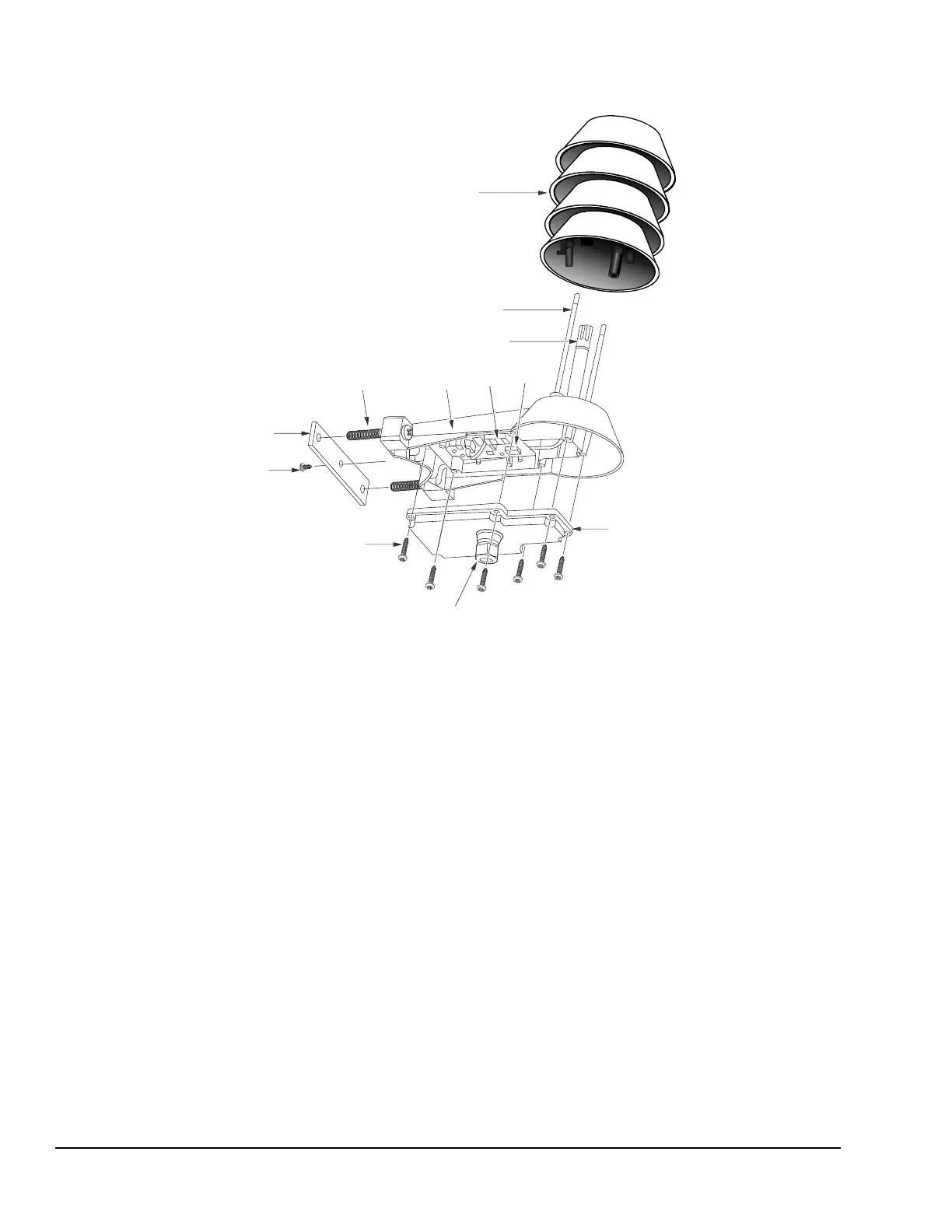

Figure 1: Hx-68P3 Series Outside Humidity and Temperature Transmitter Features
FIG:Features
Radiation Shield
Radiation Shield Screws
Humidity Sensor and Temperature Sensor
(Under PTFE Membrane Filter)
Transmitter
Body
Screw
Ter mi nal
DIP
Switches
Pole Mounting
Screw
Pole
Mounting
Clamp
Set Screw
Cable Gland
Transmitter
Cover
Transmitter
Cover Screw (Captured)
