Johnson Controls METASYS TC-9102 Series User Manual

Technical Bulletin—TC-9102 19
tc2wir3s
3-Speed
External supply for fan
230 VAC L = Live
Isolate before servicing.
Window
Contact
Mode LED
NTC
Sensor
Analog 0 -10 VDC
PAT 24 VAC
+
M
24 VAC
Common
Ground
24 VAC
Supply
DAT 24 VAC
ON-OFF
(2 stages)
24 VAC
+
Remote
Set Point
-
N
L
Fan
Low Med.
High
Fan Control
Override
2
1
63 6271 70 61 60 42
41
40
32
31
30
3 2 1
11 12 1310 14 15 20 21 22 23 24 50
51
52
Power Supply
Cooling Output
Heating Output
Occupancy
Sensor
Digital Inputs
Analog Inputs
System 91 N2
Communication Bus
Digital Common
Analog
RT+
RT-
COM
Common
SHIELD
-
When using multistranded wire,
crimp a metal sleeve over the exposed
conductors before inserting into
terminals 60...71.
See Note 1
See Note 2
See Note 3
Note 1: For PAT, DAT and ON-OFF outputs, terminals 1, 31 and 41 are
internally connected.
For 0-10 VDC outputs, terminals 30 and 40 are internally connected.
Note 2: Wiring for Cooling Output is the same as shown for Heating Output.
Note 3: See also figures 17-20 for Room Command Module Wiring.

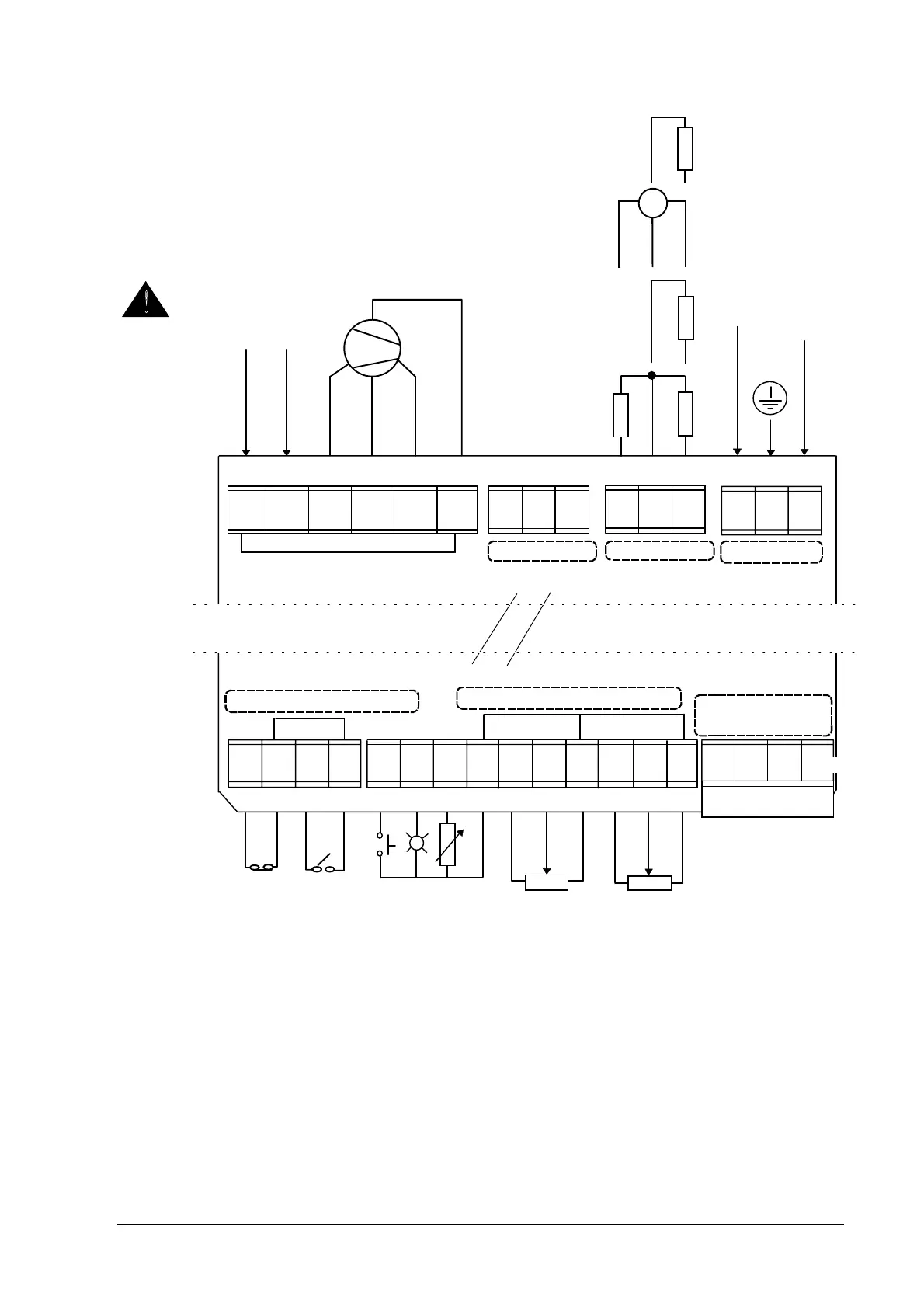

Figure 15: TC-9102 Controller Wiring - 3-Speed Fan Control

Johnson Controls METASYS TC-9102 Series Specifications

General

Brand	Johnson Controls
Model	METASYS TC-9102 Series
Category	Control Unit
Language	English
