Johnson Controls NAE User Manual

Installing the NAE/NIE Technical Bulletin14
NAE parts
N2-B N2-
A
POWER
+ - REF S N2 + - REF S N2
+ NC -
POWER ETHERNET 10
/
LINK
100
/
LINK
N2
A
N2B PEER COM RUN 24 V
A
C
B
A
TT F
A
ULT
GENL F
A
ULT
SERI
A
L B
SERI
A
L
A
USB
A
USB B
ETHERNE T MODEM
SY ST EM
RE-B OOT
NAE
R
ET SY
B A T T E R Y

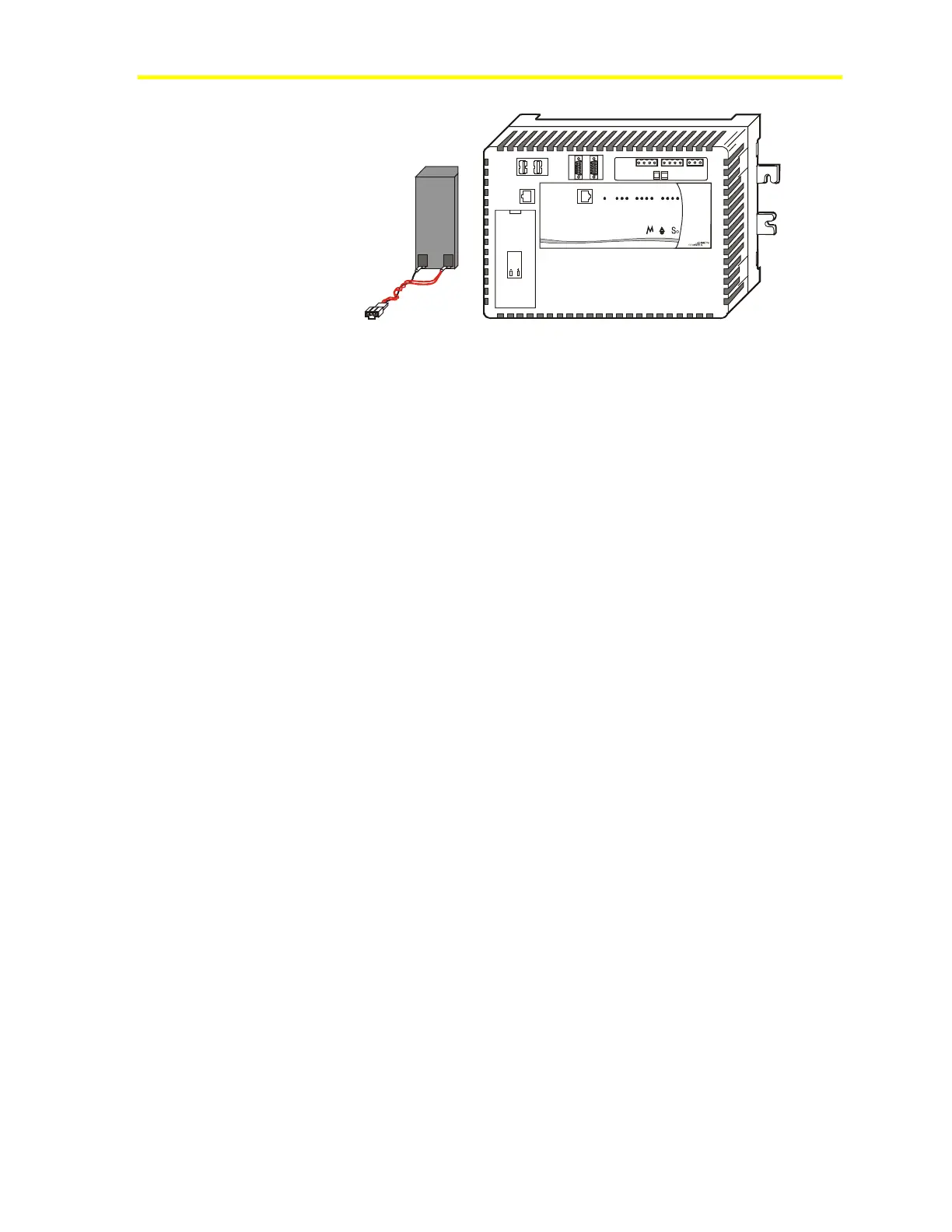

Figure 8: Parts Shipped in NAE Order
• Do not mount in areas that are prone to vibration, such as
ductwork, and areas where electromagnetic emissions from other
devices can interfere with NAE communication.
• Do not drop the unit or strike it with tools.
• Do not share the power transformer 24 VAC secondary with
another load (could cause noise interference).
• Do not open the unit. The NAE has no user-serviceable parts
inside.
• Do not route the communication cables within 50 mm (2 inches)
of the vents slots in the sides the NAE housing.
• Do not install the NAE in an airtight enclosure.
Additional Notes for Enclosure Installations
If you plan to use an enclosure where the operating ambient
temperature is ever expected to reach 50°C (122°F) within the
enclosure, closely follow the considerations in General Notes: All
Installations and the following:
• Do not mount any heat-generating devices in the enclosure with
the NAE other than its power transformer and modem.
• Do not mount the power transformer below the NAE.
• Do not mount the NAE such that the enclosure wall or the
transformer obstructs its venting.
• Do understand that if you maintain temperature with a cooling fan,
the reliability of the fan is not guaranteed and you may need to
monitor the fan or temperature.

Johnson Controls NAE Specifications

General

Power Supply	24 VAC/VDC
Protocols Supported	N2
Operating Temperature	0°C to 50°C (32°F to 122°F)
Communication Ports	1x RS-485
Dimensions	5.4 x 9.0 x 2.5 in.
Weight	2.0 lb
