Johnson Controls NS Series Installation Guide

CAUTION
Risque de décharge électrique
Débrancher l'alimentation avant de réaliser tout
raccordement électrique afin d'éviter tout risque de
décharge électrique.
Important: Failure to adhere to these wiring
details causes the network sensor to function
incorrectly. You will not be able to connect to
the system using the wireless commissioning
converter or the handheld VAV balancing tool,
and you will not be able to expand the system
with future offerings.

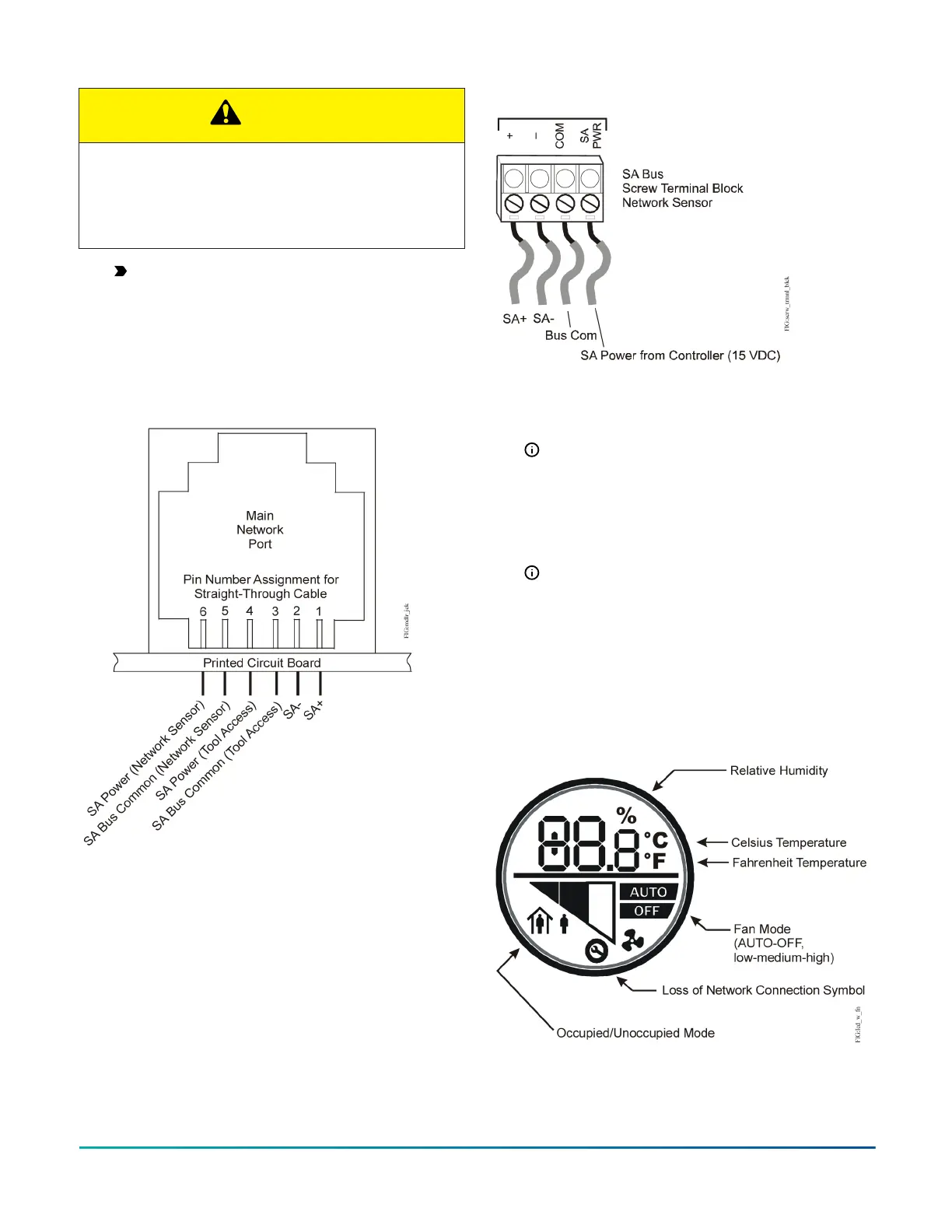

Figure 1: Modular Jack Pin Number Assignments
Figure 2: Wiring to the Screw Terminal Block
10. Align the tabs on the bottom edge of the mounting
base with the slots on the bottom edge of the
network sensor assembly, and rotate the assembly
onto its mounting base.
Note: On models featuring a screw terminal
block, be certain that the terminal block pins
align with the holes in the terminal block.
11. Use a 1/16 in. (1.5 mm) Allen wrench or Johnson
Controls T-4000-119 Allen-Head Adjustment Tool to
tighten the security screw and fasten the network
sensor assembly to the mounting base.
Note: Do not overtighten the security screw to
avoid damaging the unit.
12. Use the Metasys Controller Configuration Tool
(CCT) or Facility Explorer Programmable Controller
Tool (FX-PCT) software to commission the
network sensor. Refer to the Controller Tool Help
(LIT-12011147) for more details.
Setup and Adjustments
Figure 3: LCD on Temperature/RH Models
Vertical Wallbox-Mounted or Surface-Mounted NS Series Network Sensors with LCD Installation Guide 3
