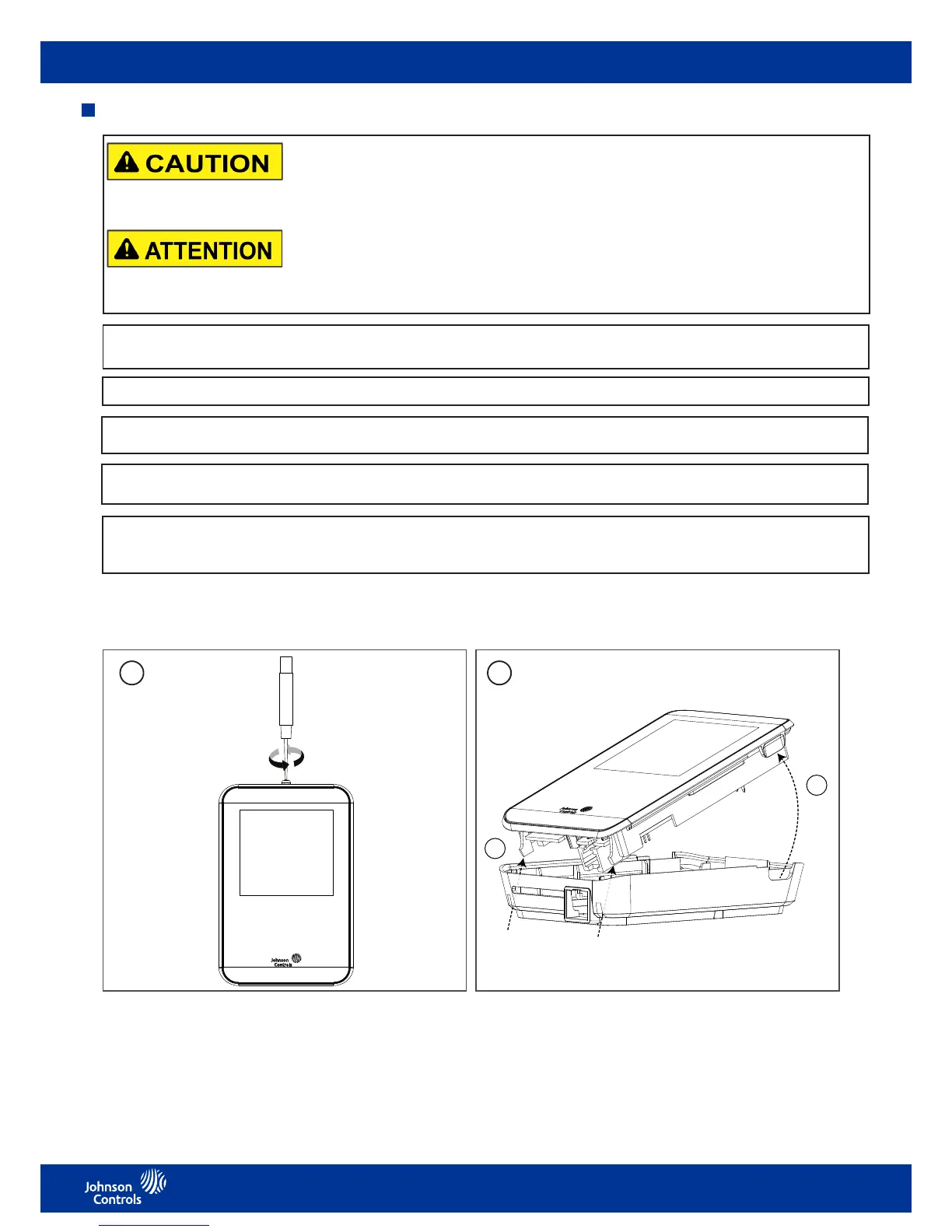

Installation
21
Risk of Electric Shock.
Disconnect the power supply before making electrical connections to avoid electric shock.
Risque de décharge électrique.
Débrancher l’alimentation avant de réaliser tout raccordement électrique an d’éviter tout risque de décharge électrique.
IMPORTANT: Do not insert tools into the housing. Be careful not to damage any components when pushing the tabs on either side
of the sensor.
IMPORTANT: Do not remove the printed circuit board (PCB). Removing the PCB voids the product warranty.
IMPORTANT: Failure to adhere to these wiring details causes the network sensor to function incorrectly. You will not be able to
connect to the system using the Bluetooth® Wireless Comissioning Converter (BTCVT), Mobile Access Portal Gateway (MAP), or
the handheld VAV balancing tool, and you will not be able to expand the system with future offerings.
Notes:
IMPORTANT: Do not connect the SA bus ground, the modular phone jack GND or the screw terminal COM, to the negative
communication terminal SA–.
IMPORTANT: Do not connect the Sensor/Actuator (SA) connection at the controller until the cables have completely
been terminated.
• Do not use both the modular phone jack and screw terminal connections on the same SA bus segment
at the same time.
• The modular phone jack and screw terminal connections cannot be used simultaneously.
