Page #15 background imageLoading...
Page #15 background image

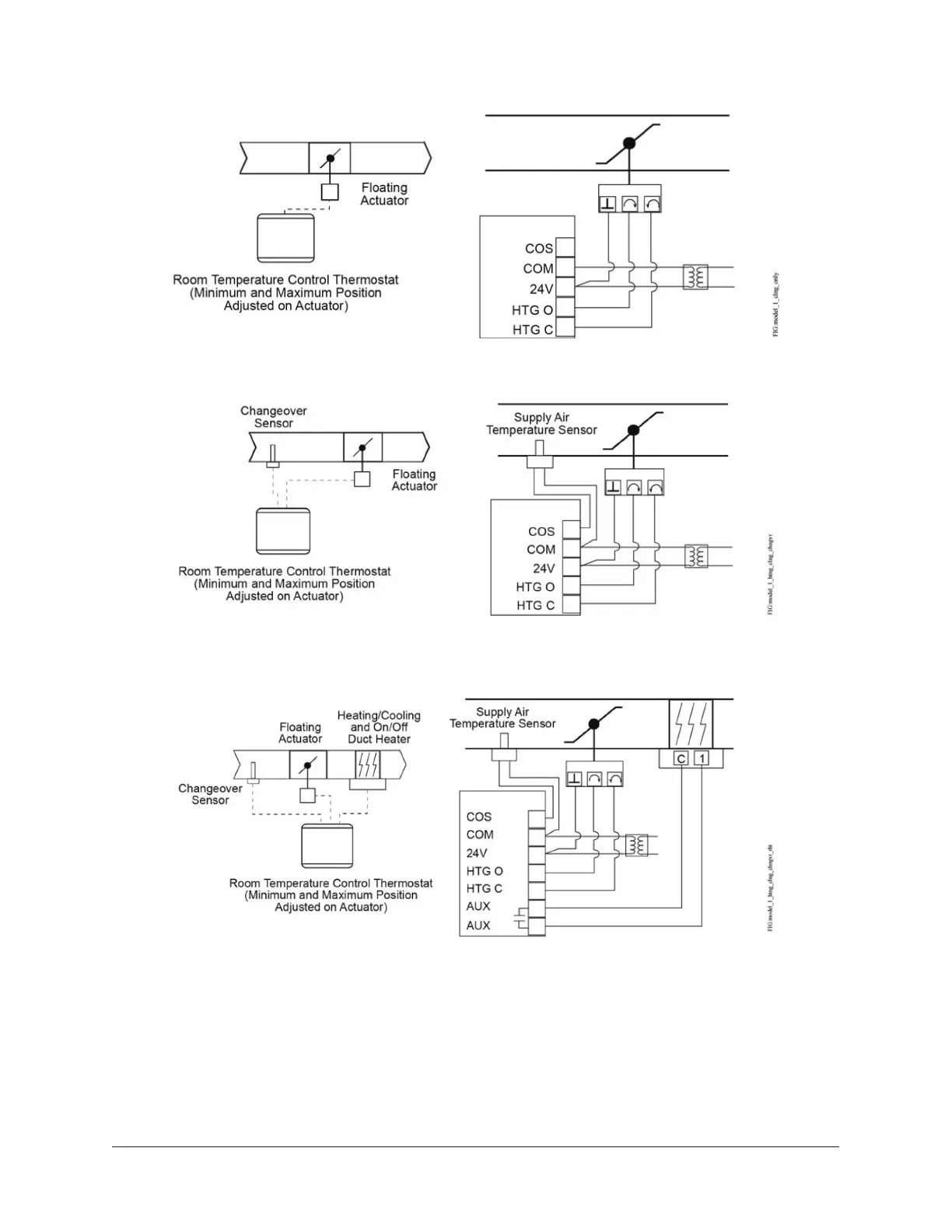

Figure 11: Floating control (pressure-dependent VAV)
Figure 12: Floating control (pressure-dependent VAV with changeover sensor/switch)
Figure 13: Floating control (pressure-dependent VAV with changeover sensor/switch and
reheat)
15TEC3000 Series On/Off or Floating Fan Coil Thermostats Installation Guide
