Johnson Controls TEC3322-1 Series - Page 11

TEC3000 Series Networked and Wireless Proportional Fan Coil and Individual Zone Thermostat Controllers with
Dehumidification Capability Installation Guide
11

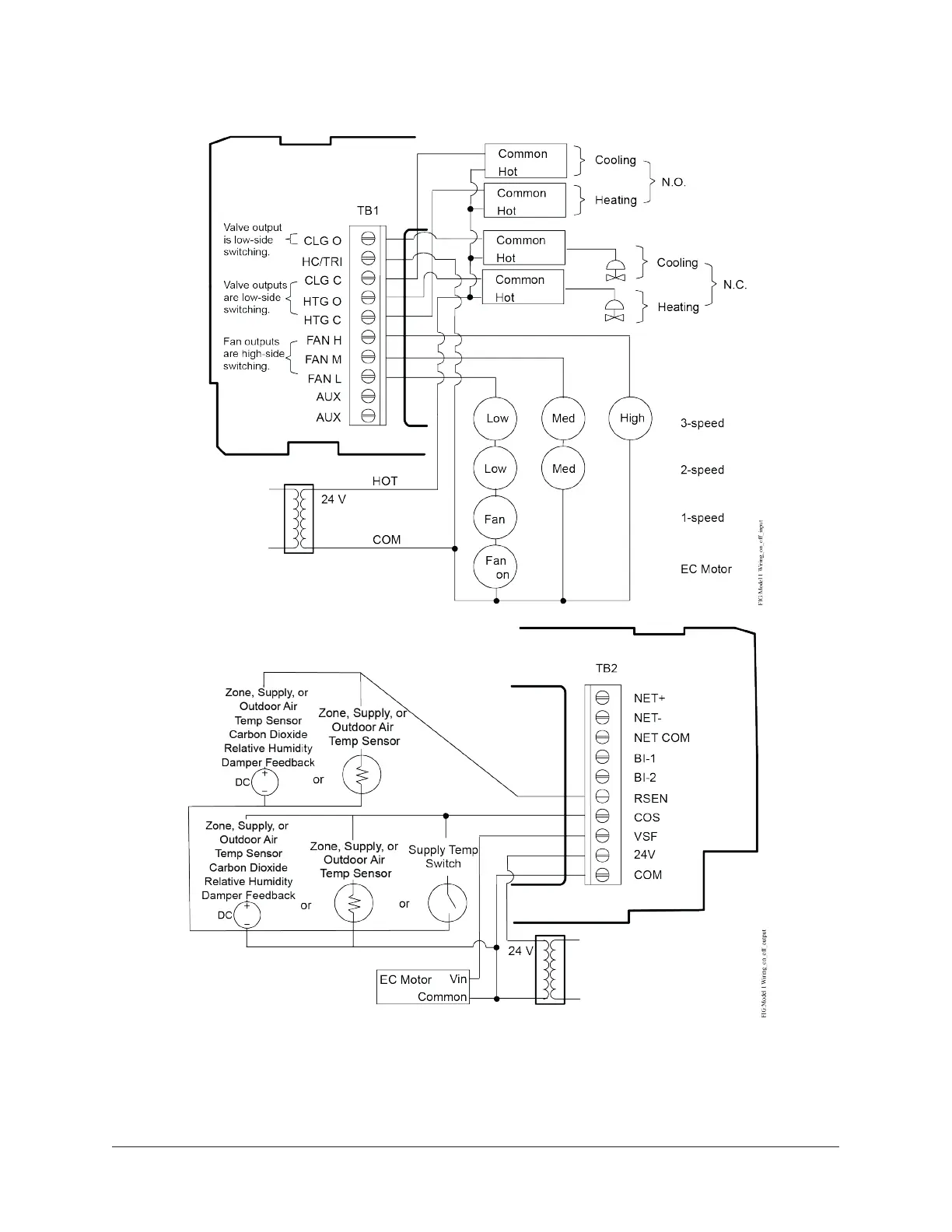

Figure 7: Proportional wiring diagram (See Table 4 for terminal identification)
