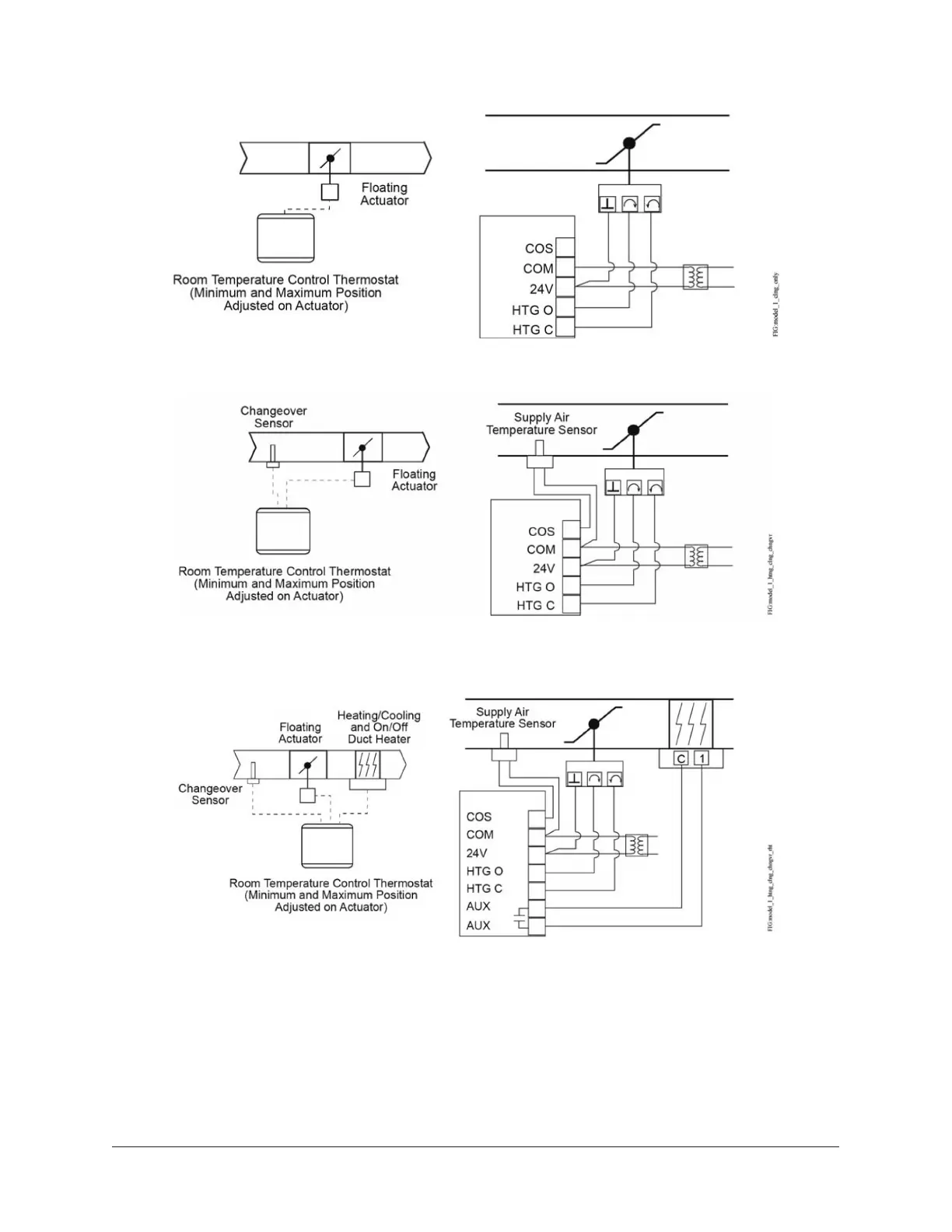

TEC3000 Series Networked and Wireless Proportional Fan Coil and Individual Zone Thermostat Controllers with
Dehumidification Capability Installation Guide
15
Figure 17: Thermostat controller home screen in cooling mode (left) and heating mode (right)
Customizing the home screen
Customizing the Home screen settings include:
You can also show or hide these items on the Home screen:
To customize the Home screen:
1. Press the Menu icon.
2. Press Display Settings.
3. Enable or disable elements of the home screen as appropriate for the building owner and occupants.
4. Set the passcode on the thermostat controller to prevent the occupants from changing settings that they should
not have access to change.
Touchscreen icons
Table 5 describes the touchscreen icons on the home screen. Press and release a touchscreen icon to activate the
TEC. Additional touchscreen icons appear based on the menu, and those icons are also described in Table 5.
• Brightness • Units • Time Zone • Date
• Enable Backlight • Time • Time Format • Date Format
• Fan Button • Off Button • Alarms • Date/Time
• Temperature • Hold Button • Occupancy Status
• Humidity • Setpoint • Unit Status
Table 5: Touchscreen icons (Part 1 of 5)
Icon Icon name Description
Menu
Displays the configuration screens where various settings may be adjusted.
Alarm
Indicates that the thermostat controller has triggered an alarm.
Unit Power
On
Standby
Powers the thermostat controller on or off.
Notes:
• This icon disables all equipment control but does not physically power down
the unit.
• On the modern home screen, if the Unit Power icon is in standby mode, the
temperature and humidity are also displayed in standby mode to indicate
that control off or standby mode is active.
