KP-241 PG2 – Installation Instructions
Inserting the battery

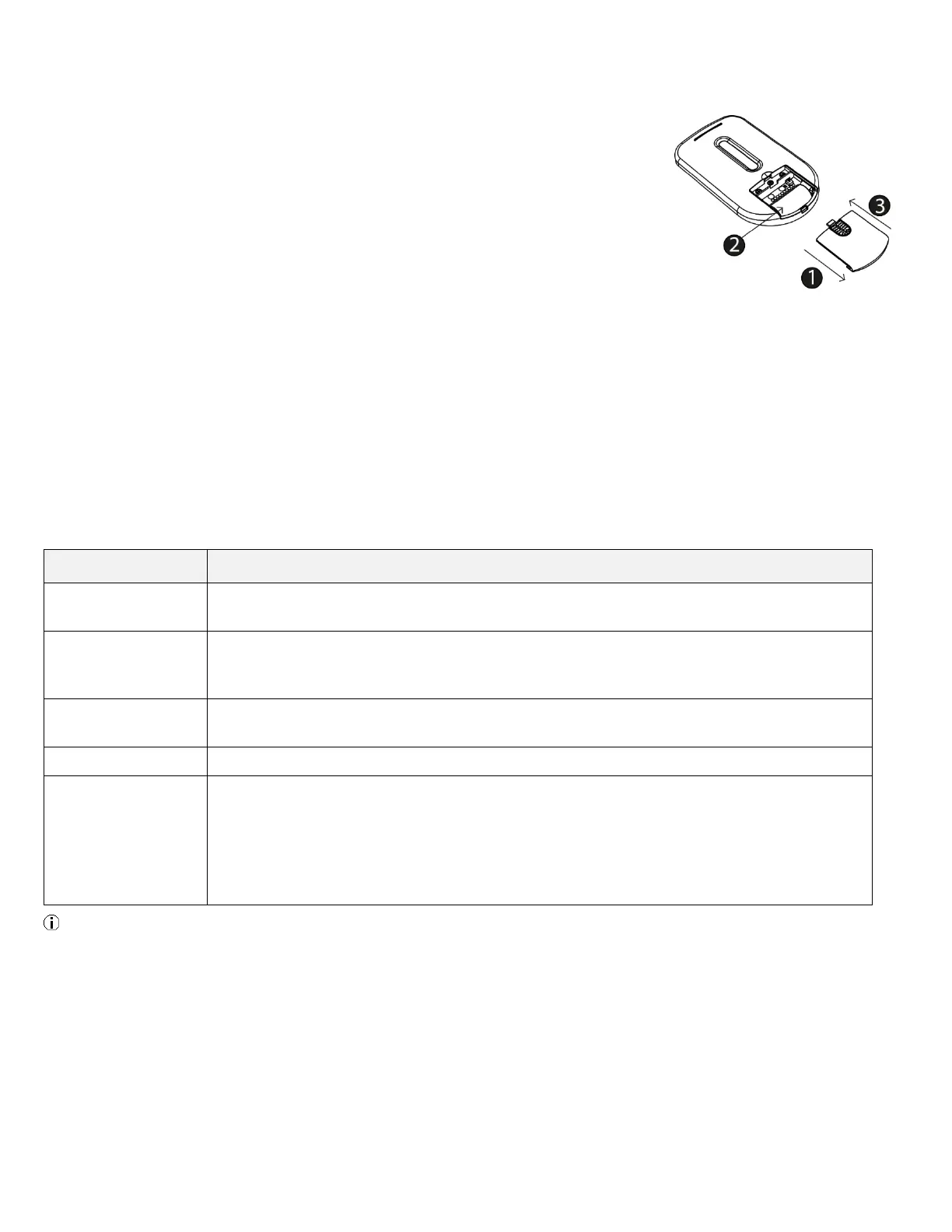

Caution! There is a risk of explosion if the battery is replaced by an incorrect type. Figure 2: Inserting the battery
1 Slide out the battery compartment cover.
2 Insert the battery, and ensure correct polarity.
3 Close the cover.
Warning! Dispose of used batteries according to the manufacturer's instructions and
according to local rules and regulations.
Enrolling the keypad to the panel
1 Enter the Installer menu and select 02: ZONES/DEVICES.
2 Select ADD NEW DEVICES.
3 Press the Function button on the keypad until the LED lights yellow.
The panel displays, for example, DEVICE ENROLLED K02: Prox Keypad ID No. 371-XXXX.
Alternatively, enter the device ID digits 371-XXXX, as printed on the keypad label.
The panel displays, for example, ID ACCEPTED K02: Prox Keypad ID No. 371-XXXX.
4 Optional: Navigate to choose the keypad number (for example, K04).
5 Press OK.
If the partitioning feature is enabled in the panel, the Partitions menu displays.
6 To assign the keypad to one or more partitions, press the 1, 2 or 3 buttons on the panel.
7 Press Next. The DEV SETTINGS menu displays.
8 Press OK to enter keypad configuration.
Table 2: Keypad configuration options
Option
Function
Tampers
Determines if the keypad reports on both the battery cover and back tamper (All Tampers), the
battery cover tamper only (Battery Only), or none (Disabled – default).
Supervision
Determines if the control panel monitors the integrity and quality of the radio link. A missing
trouble alert occurs if the keypad misses at least one supervision signal within 5 minutes. The
options are Enabled or Disabled (default).
Exit-Entry Beeps
Determines if the keypad always sounds the exit and entry beeps (ON), only when the system is
armed away (OFF @ Home), or does not sound exit-entry beeps at all (OFF – default).
Sounder volume
Determines the keypad sound volume. The options are Minimum, Medium (default), and Maximum.
Button (*)
Determines the use of the Function button from the following options:
 Status (default): Announces the system status. Applicable only for panels with voice capabilities.
 Skip exit delay: Stops the exit delay time.
 PGM ACTION: Activates the PGM output.
 Stop Beeps: Causes the control panel and other devices in the system to stop beeping.
 Not Used: No function assigned to the Function button.
Note: For more information on enrolling a new keypad to the control panel, modifying the settings, or deleting an enrolled
keypad, refer to the relevant section in the control panel's installer guide.
