Johnson Controls VA-77 Series Product Bulletin

9
PB_VA-7700_Electricl Valve Actuators_02 2011
VA-7740-xx01■-■Floating■models,■24■VAC■supply
VA-7740-xx03■-■Floating■models,■230■VAC■supply
VA-7746-xx01■-■Proportional■models,■24■VAC■supply
WARNING:■■
Equipment■Damage■Hazard
• On■24■V■models■with■manual■override,■it■is■not■
permitted■to■connect■voltages■greater■than■■
24■V■to■terminals■10,■11,■and■12

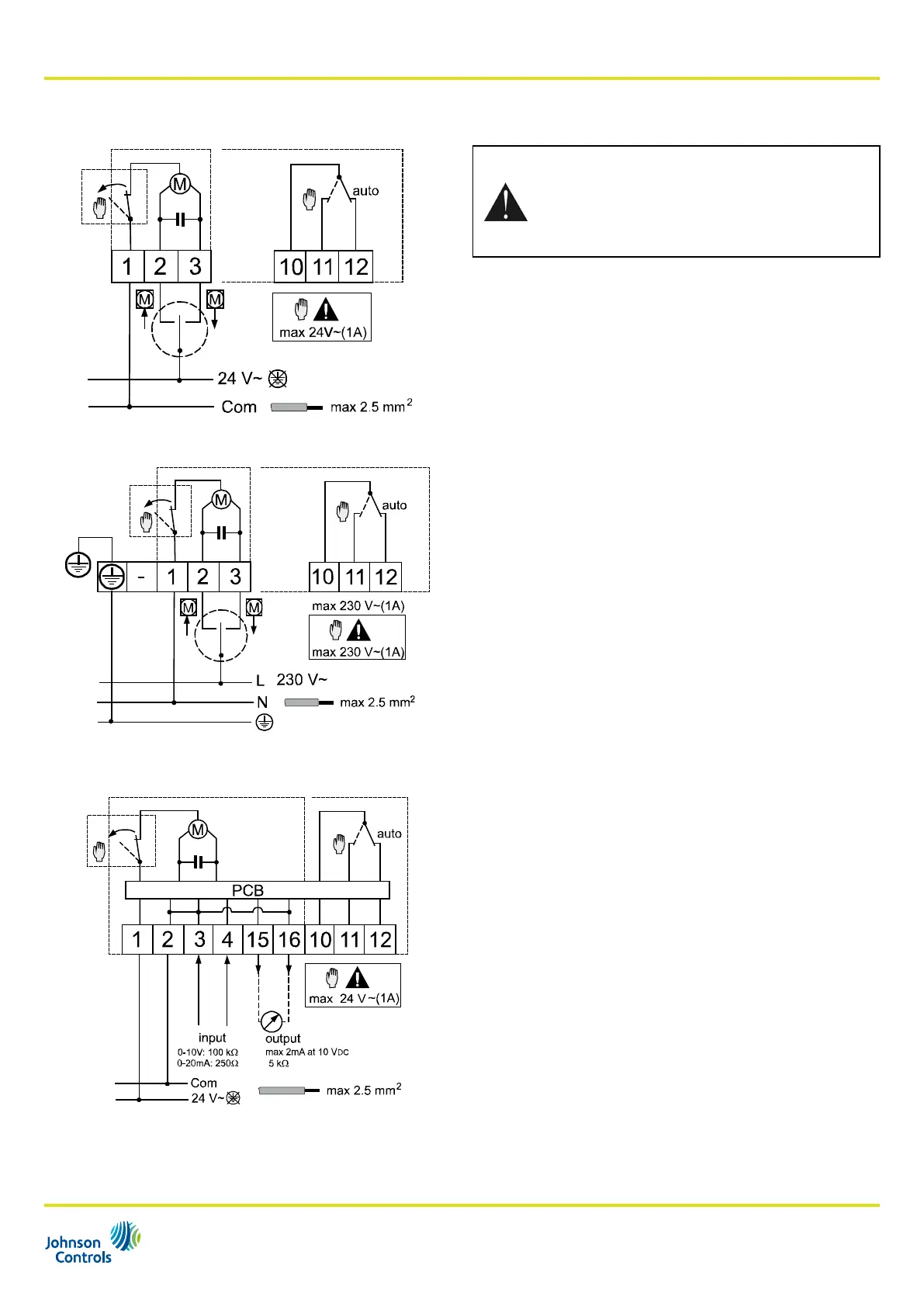

Wiring■Diagrams■(Models with mechanical manual override)
Com Com
0...10V
DC
0...10V
DC
/0...20mA
