Johnson Controls VAV1717 - Page 13

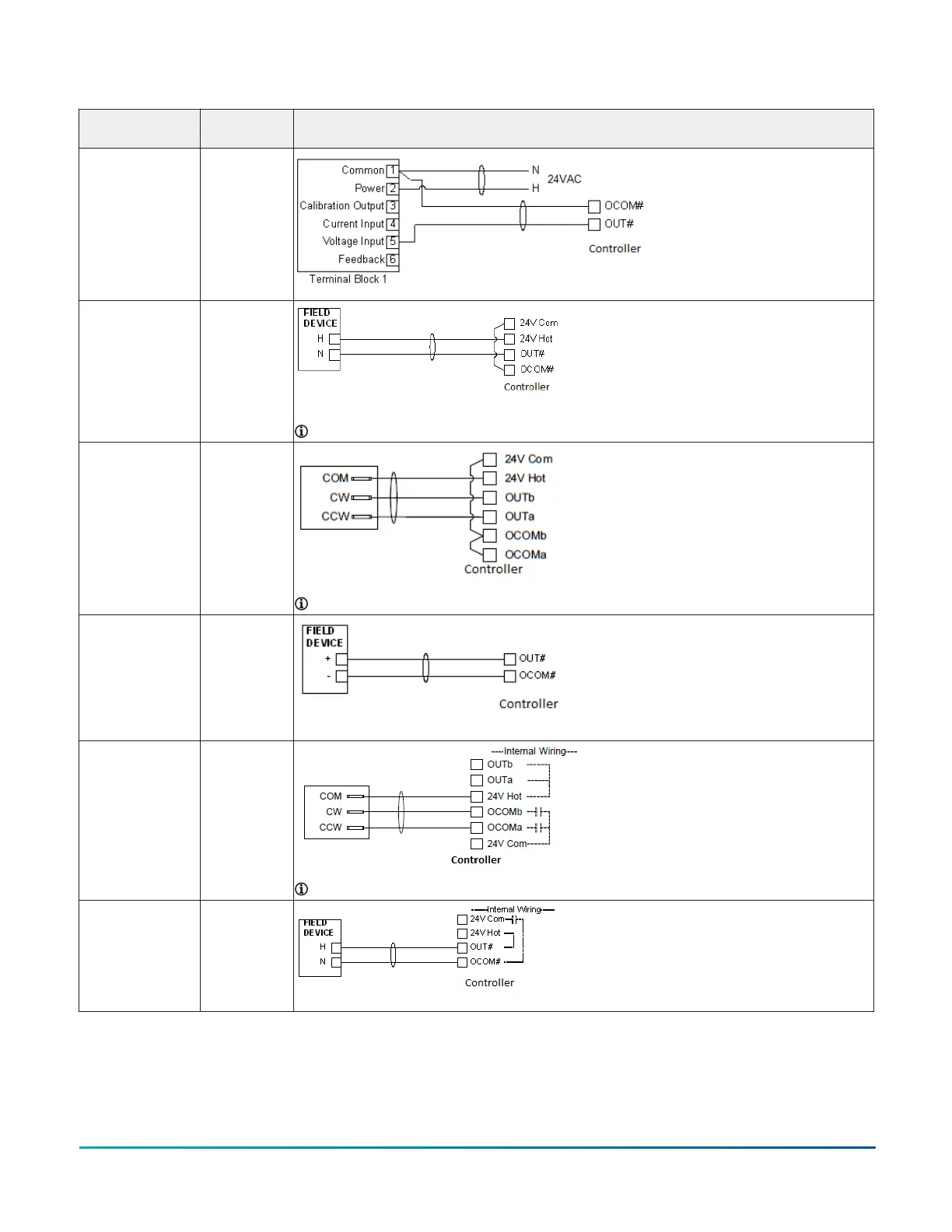

Table 9: Termination diagrams
Type of field
device
Type of input
or output
Termination diagrams
0–10 VDC Output
to Actuator
(External Source)
CO
24 VAC Triac
Output (Switch
Low, External
Source)
CO
Note: Applies to CO4 and CO5.
Incremental
Control to
Actuator (Switch
Low, Externally
Sourced)
CO
Note: Applies to CO4 and CO5.
Analog Output
(Voltage)
CO
Incremental
Control to
Actuator (Switch
Low, Internally
Sourced)
BO
Note: Applies to BO3, BO1, and BO2.
24 VAC Binary
Output (Switch
Low, Internally
Sourced)
BO
VAV1717 and VAV1732 VAV Controllers Installation Guide 13
