Johnson Controls VMA1615 Installation Instructions

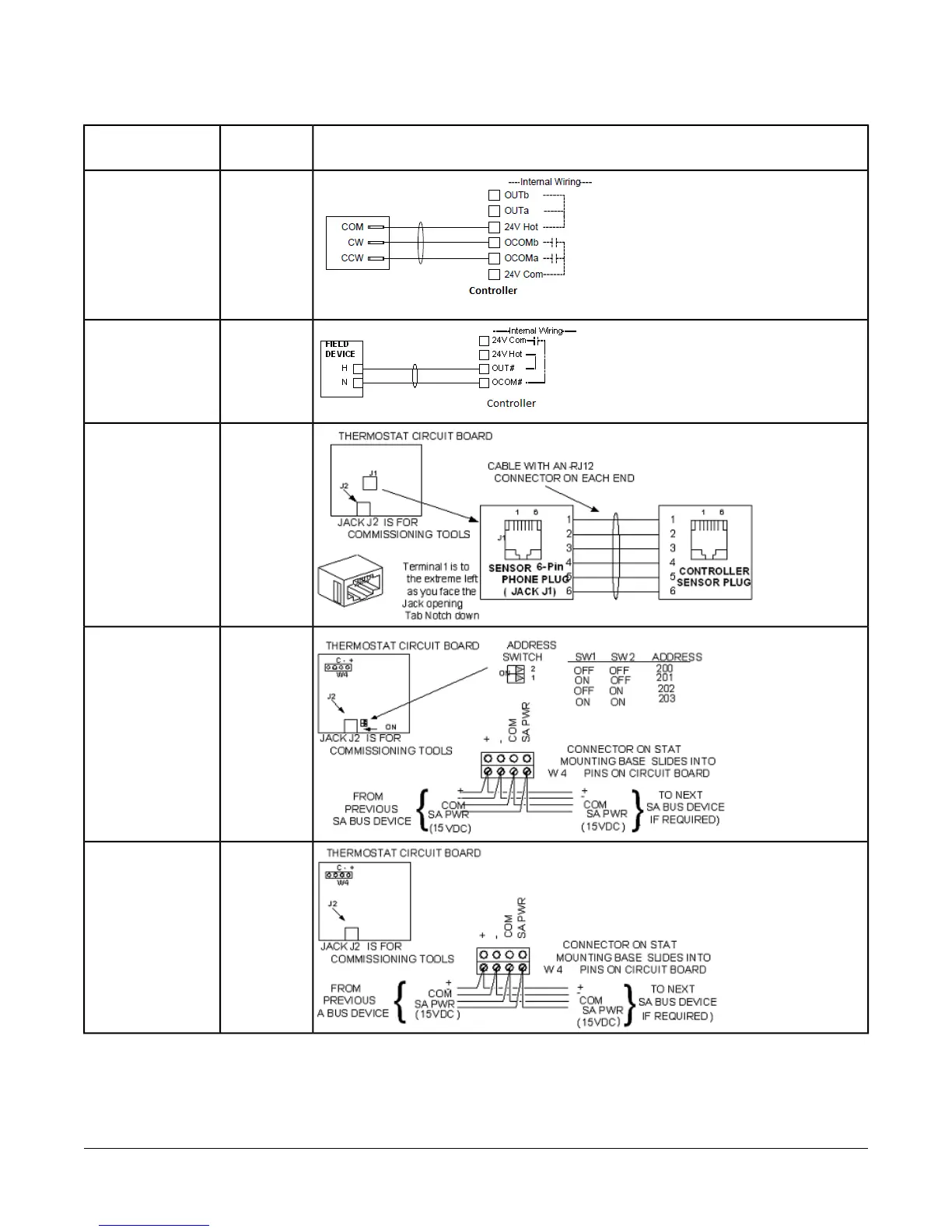

Table 2: Termination Details
Termination DiagramsType of
Input/Output
Type of Field
Device
Note: Applies to BO3 (for VMA 1630 only), BO1, and BO2.
BOIncremental Control
to Actuator (Switch
Low, Internally
Sourced)
BO24 VAC Binary
Output (Switch
Low, Internally
Sourced)
SA BusNetwork Stat with
Phone Jack (Fixed
Address = 199)
SA BusNetwork Stat with
Terminals
Addressable
SA BusNetwork Stat with
Terminals (Fixed
Address = 199)
11VMA1615/1626/1628/1630 VAV Controllers Installation Instructions
