Johnson Controls WRZ Series User Manual

Note: New double-sided adhesive foam tape is
required to remount the base on the surface.
Use Can-Do National Tape (Code No. 99116)
adhesive foam tape or its equivalent.
Preparing the WRZ Series Sensor for
operation
About this task:
To prepare the WRZ Series Sensor for operation, and
to reinstall the sensor housing on its mounting base,
complete the following steps:
1. Place the appropriate DIP switch overlay, based
on the application, over the DIP switches. See the
following figures.

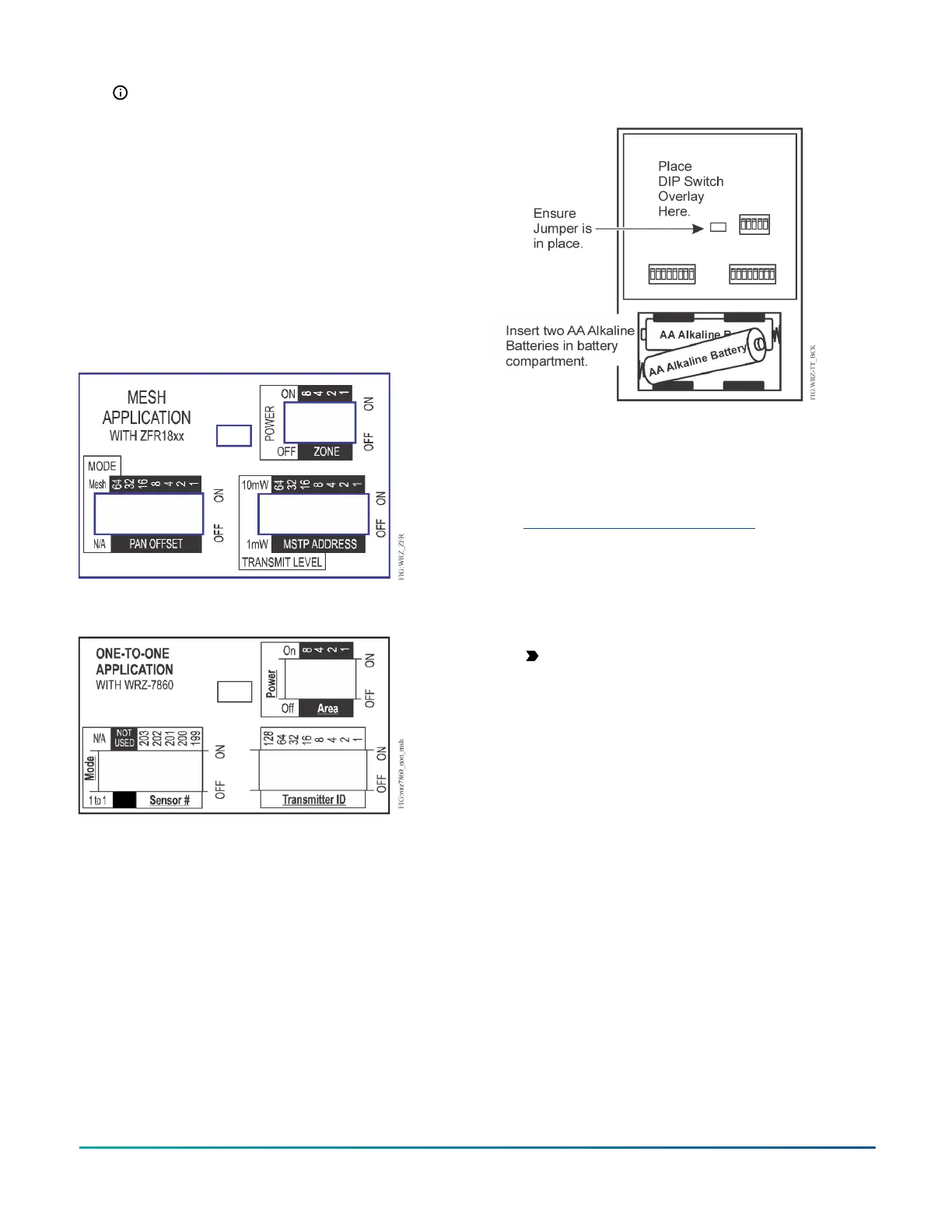

Figure 4: Mesh network application DIP switch overlay
Figure 5: One-to-one network application DIP switch
overlay
Figure 6: Back of WRZ Series Sensor showing DIP switches
and batteries
2. Set the DIP switches located on the back of the
sensor.
For a mesh network application that uses a ZFR
and ZFR Pro Series Router , see Preparing the
WRZ Series Sensor for operation and Figure 7, and
set the DIP switches as indicated in Figure 7. See
Commissioning Multiple WRZ Sensors for information
on commissioning multiple WRZ Series Sensors in a
ZFR18xx Series Wireless Field Bus System.
a. Set the POWER switch to OFF.
b. Set the MODE switch to MESH.
c. Set the PAN OFFSET switches according to the
job or system plans.
Important: Ensure that the PAN OFFSET
is the same for each ZFR or ZFR Pro Series
Coordinator, ZFR and ZFR Pro Series Router,
and WRZ Series Sensor in a mesh network. See
Figure 7.
d. Set the ZONE DIP switches according to the job
or system plans.
e. Set the MS/TP address DIP switches to match
the MS/TP address of the controller that the
sensor communicates with.
f. Set the TRANSMIT LEVEL switch to 10 mW.
WRZ Series Wireless Room Sensors Installation Guide4
