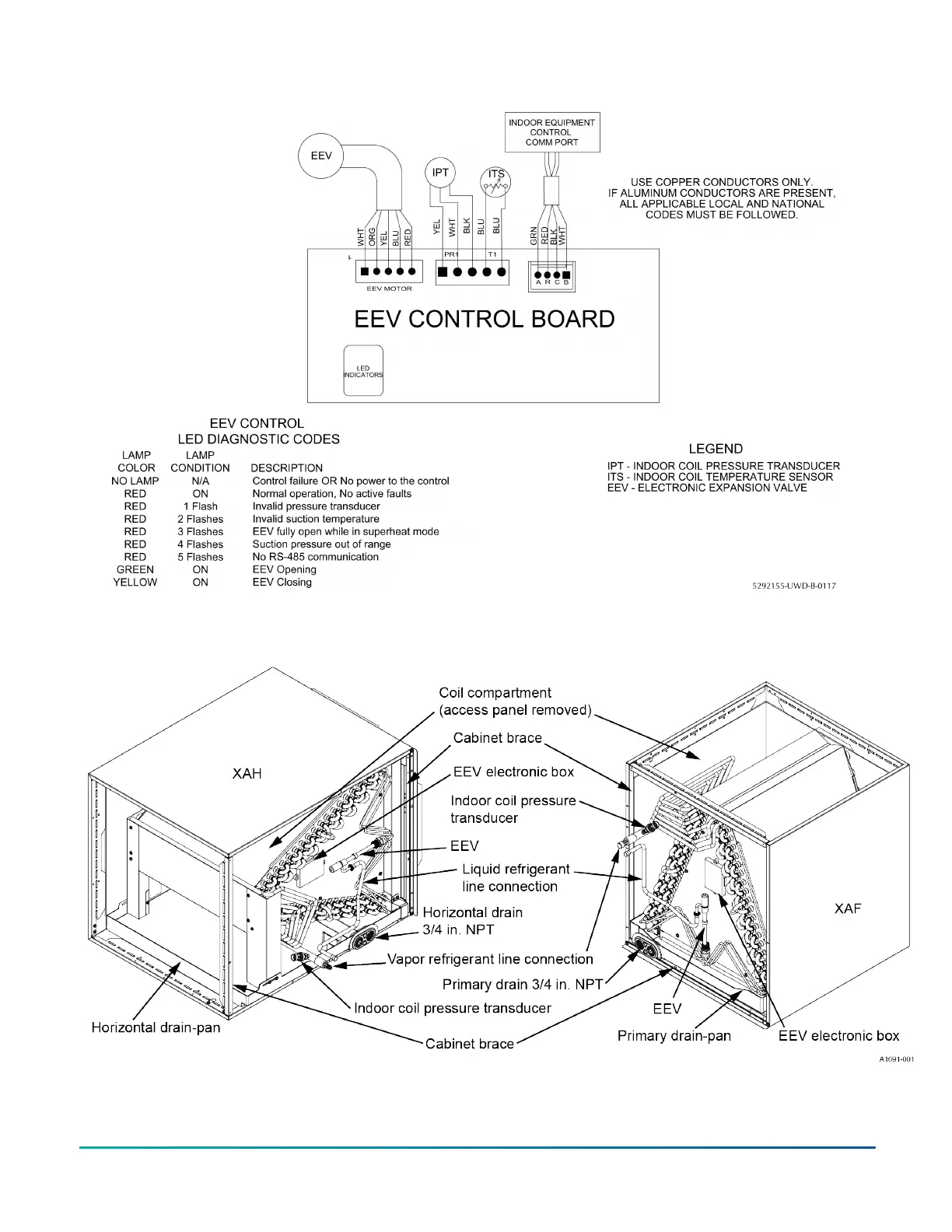

Figure 17: Wiring diagram - EEV
Figure 18: XAF and XAH coils with an EEV installed
Installation Manual: XAF, XAH, and XAU Series - Full Cased and Uncased Coils for Cooling and Heat Pumps 17
