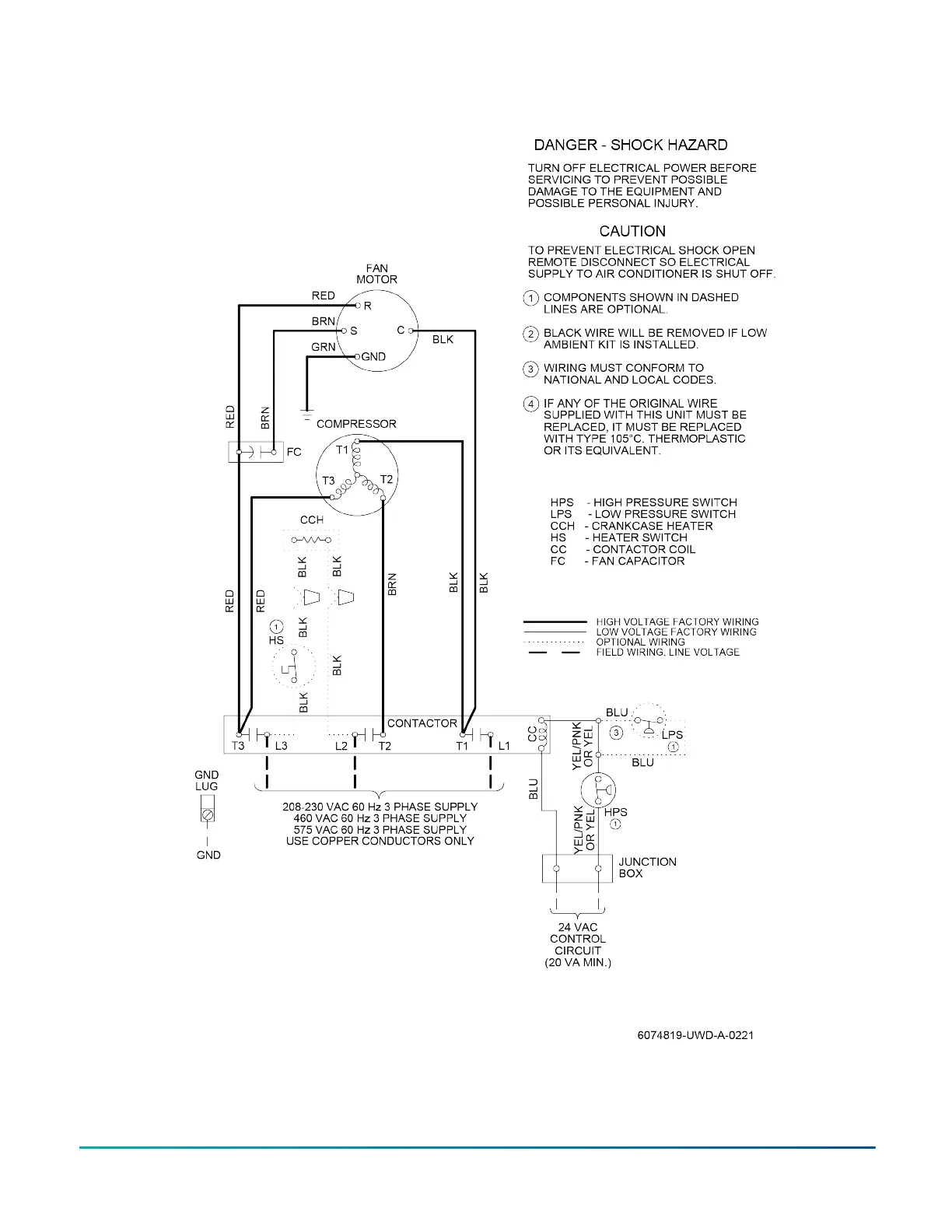

Figure 20: Wiring diagram - three-phase 13.4 SEER2
Installation Manual: R-410A Outdoor Split-System Air Conditioner 23
Johnson Controls Ducted Systems
