ZFR1800 Series Wireless Field Bus System Technical Bulletin20
To locate the products on a copy of the job site building and HVAC plans:
1. Inspect the building plans floor by floor (section by section on each floor if
necessary), and locate your field controller and the intended locations of all
WRZ sensors. See Figure 4.
2. Locate the ZFR1811 Routers near their respective field controllers.
3. Highlight all of the obstructions on the building floor plans; for example,
elevator shafts, metal equipment, equipment rooms, and duct work. See
Figure 4.
4. Locate the ZFR1810 Coordinator near the center of the space. See Figure 4.
You must locate the ZFR1810 Coordinator on the same floor or building level
as the associated ZFR1811 Routers. The ZFR1810 Coordinator’s antenna
should be in direct, unobstructed line-of-sight with a minimum of two
ZFR1811 Routers.

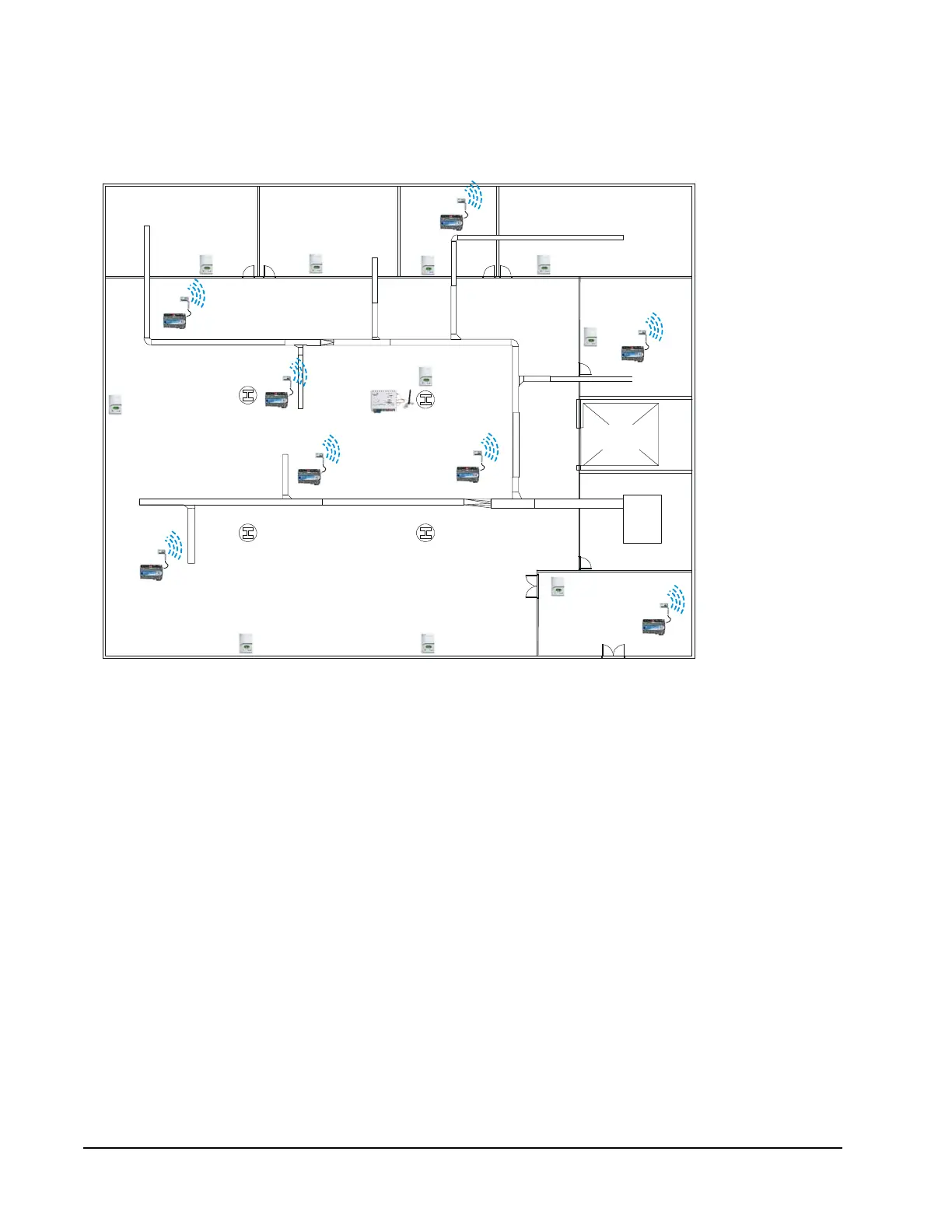

Figure 4: Building Floor Plan with ZFR1800 Series System
WRZ
Sensor
Building
Column
Field
Controller
ZFR1810
Coordinator
F
i
g
:
Z
F
R
f
l
r
o
l
n
ZFR1811
Router
Elevator
Shaft
