Johnson Controls ZU Series - Side Duct Dimensions; Left;End Duct Dimensions; Unit Side Duct Openings; Through -12 Unit Left;End Duct Opening

5566216-BIM-B-1118
Johnson Controls Ducted Systems 15

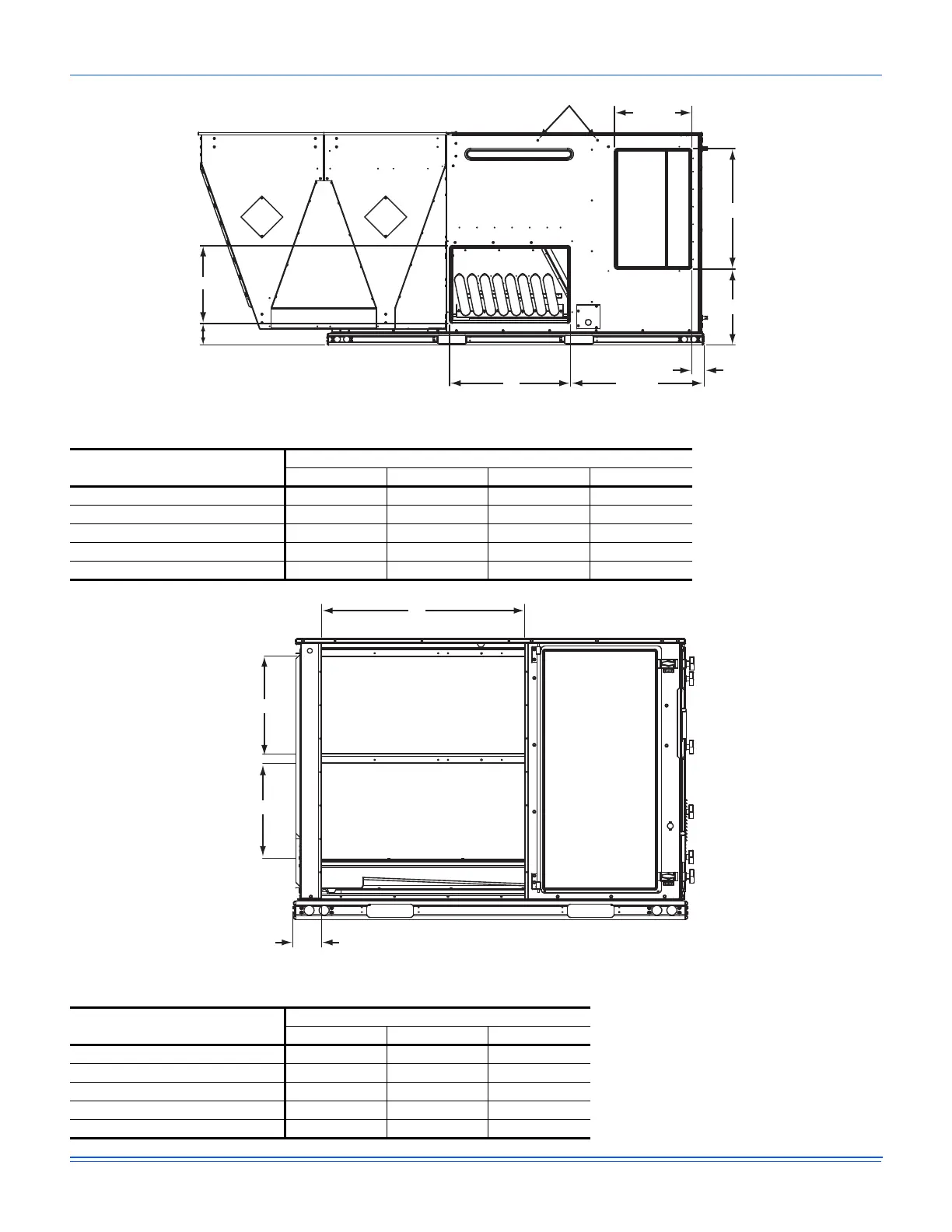

Figure 13: ZU-12 unit side duct openings
Figure 14: ZU-06 through -12 unit left/end duct opening
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 7: Side duct dimensions
Unit model number
Dimension (in.)
ABCD
ZU-06 27 3/4 12 1/16 27 1/2 16
ZU-07 27 3/4 12 1/16 27 1/2 16
ZU-08 28 1/4 18 1/16 28 1/4 18 1/4
ZU-10 28 1/4 18 1/16 28 1/4 18 1/4
ZU-12 28 1/4 18 1/16 28 1/4 18 1/4
4-5/16
A
C
B
Table 8: Left/end duct dimensions
Unit model number
Dimension (in.)
ABC
ZU-06 30.357 13.365 22.516
ZU-07 30.357 13.365 22.516
ZU-08 30.358 22.580 22.330
ZU-10 30.358 22.580 22.330
ZU-12 30.358 22.580 22.330
