5700-0800LZR
5700-0800LZR Billet Laser Operator’s Manual
Johnson Level & Tool oers
a lifetime guarantee on
this product (one-year for
electronics). You can obtain a
copy of this warranty on our
website. The limited warranty
contains various limitations and
exclusions.
Note: The user is responsible for
verifying proper calibration of
this instrument before each use.
If you experience problems with
this product, please contact us.
In the USA:
service@johnsonlevel.com
888-953-8357
In Canada:
800-346-6682
On the Web:
www.johnsonlevel.com
Please register your product
within 30 days. Registration
ensures you can obtain warranty
service even if you lose your
receipt, or so we can contact
you if there is ever a product
recall. We will never share your
information!
Scan or click:
www.johnsonlevel.com/register
Laser
Class II, <1mW, 520nm
Accuracy +/-
1
/
8
" @ 100’
Operating
Range
Up to 200’
Operating
Temp.
23°F to 104°F
Storage Temp. -4°F to 160°F
Batteries 2xAA (not included)
Battery Life 13 hours
Dimensions 8.0" x 2.25" x 0.75"
Vials Pitch, 0˚, 30˚, 45˚, 90˚
Magnets Rare Earth (3)
Weight 14oz (with batteries)
IP Rating IP54 (rainproof)
• Tool does not power on or
remain on - Check battery
polarity. Replace batteries.
Ensure battery door is tight.
Power the laser o and then
on again.
• Laser light is dim - Ensure
fresh batteries are being
used. Ensure laser is within
operating temperature range.
Ensure battery door is secure.
• Laser appears out of
calibration - Contact Johnson
for calibration service. The
laser does not contain any
user-serviceable parts.
• Note: Do not disassemble;
removal of the top safety label
will void your warranty.
• Read all operating instructions
prior to use.
• For optimum performance,
insert fresh batteries into the
laser prior to use.
• Power on the laser by pressing
the green button on the
battery door.

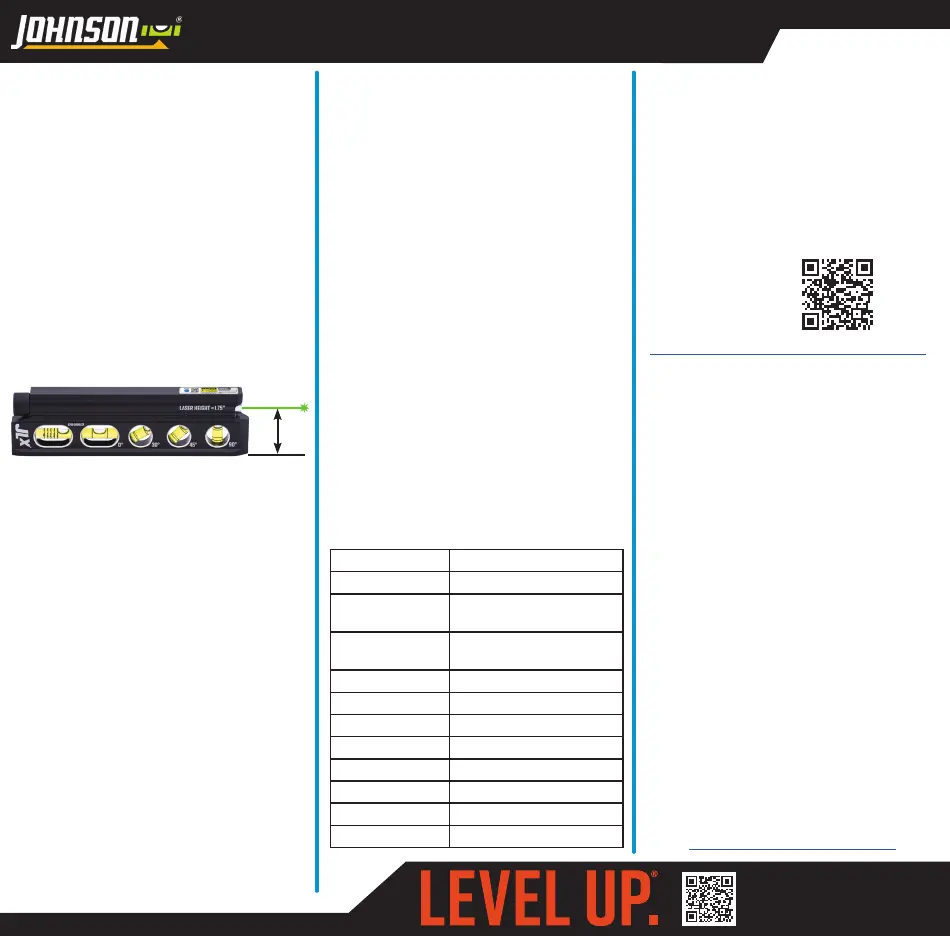

• The laser beam is calibrated
to a height of 1.75" above the
tool. For convenience, this
reference height is etched
onto the tool’s housing.
• The beam can be used as a
reference to find potential
obstructions in piping layouts,
wall layouts, HVAC ducting,
electrical conduit layouts or
other similar applications.
• The vials can be used to set
specific angles. The laser
beam will follow the angle
of the tool, and can be used
to extend 30˚, 45˚ or 90˚
reference beams over long
distances.
• To power o, press the green
power button.
• Store the tool in its pouch. For
extended storage (>3 months),
remove the batteries to
prevent corrosion. Corrosion is
not covered under warranty.
REGISTRATIONTROUBLESHOOTINGBASIC OPERATION
WARRANTY
SPECIFICATIONS
1.75"
