901-10113 - 29 - 9/16/2024
5.2 Check Condenser Coil
The condenser coil is located with the compressor, either nose-mounted or skirt-mounted. The
condenser coil is like a radiator, using airflow to cool the hot refrigerant. It is a good idea to
routinely check if airflow is restricted by unusual debris like leaves, wrappers, bags, etc.
CAUTION: Exposed coil fins can cause painful lacerations. Use caution when working near the
condenser coil.

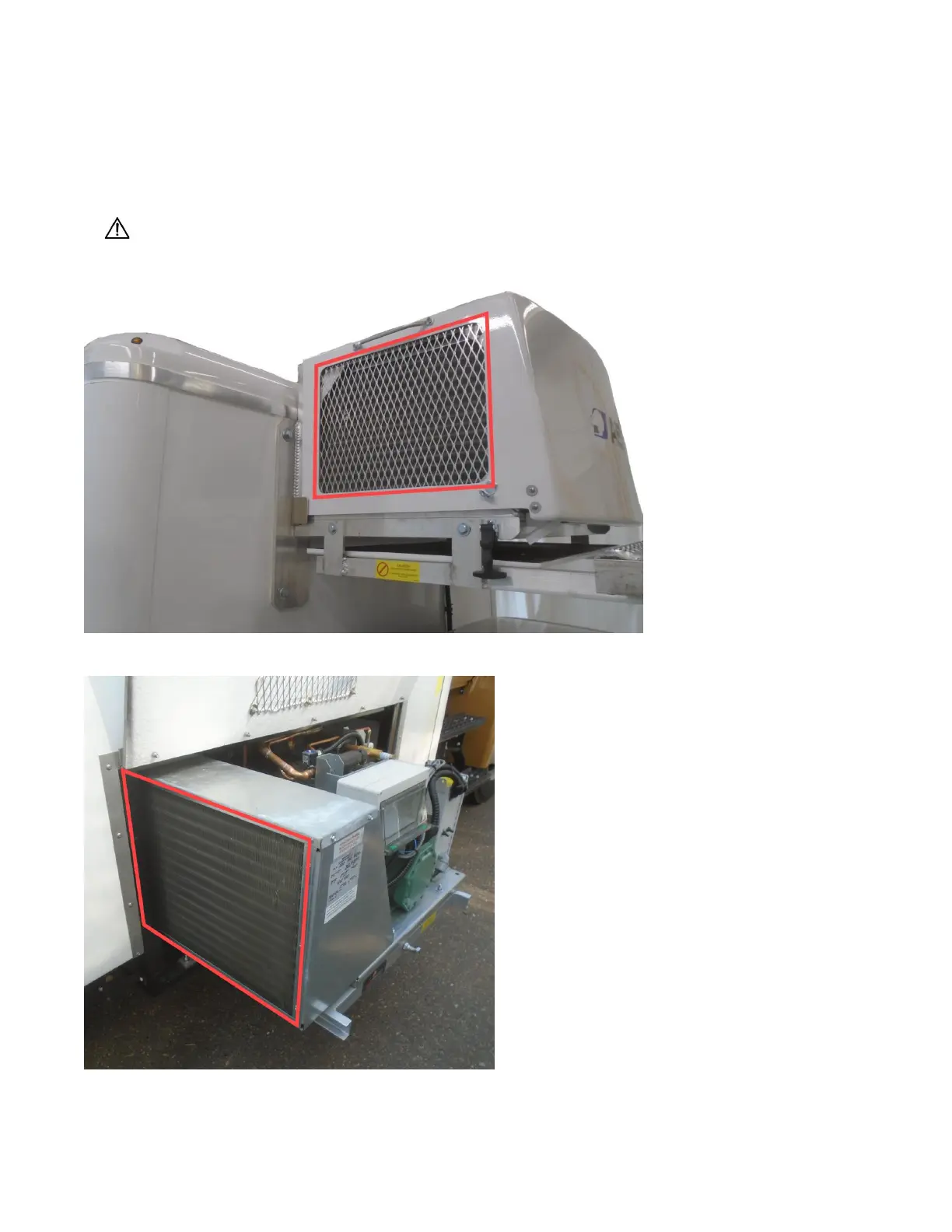

Figure 5: Condenser Coil location on a nose-mounted condensing unit.
Figure 6: Condenser Coil location on a skirt-mounted condensing unit.
