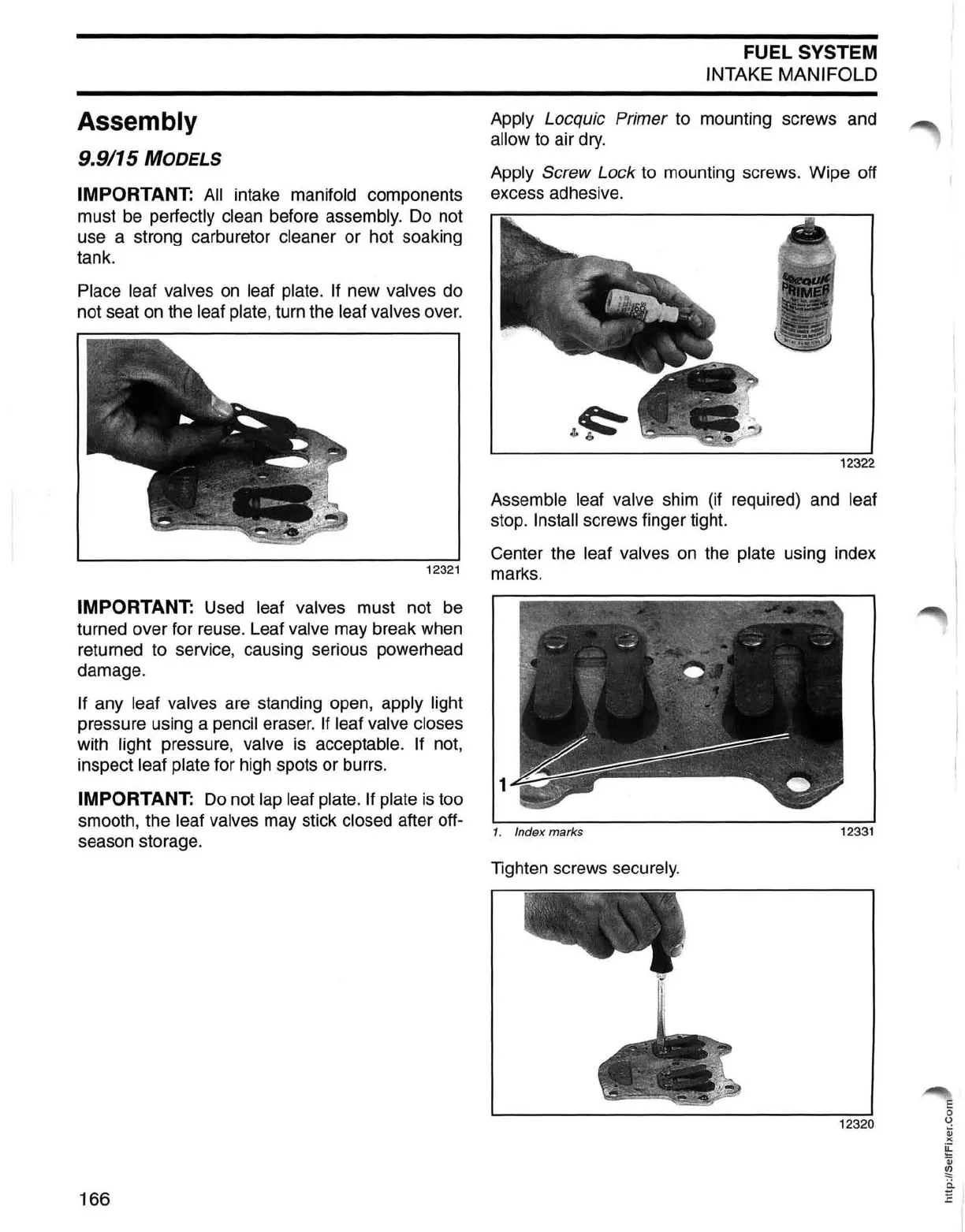

Assembly
9.9/15
MODELS
IMPORTANT:
All
intake manifold components
must
be
perfectly clean before assembly.
Do
not
use a strong carburetor cleaner or hot soaking
tank.
Place leaf valves
on
leaf plate. If new valves do
not seat on the leaf plate, turn the leaf valves over.
FUEL SYSTEM
INTAKE MANIFOLD
Apply Locquic Primer to mounting screws and
allow to air
dry.
Apply Screw Lock to mounting screws. Wipe off
excess adhesive.
Assemble leaf valve shim (if required) and leaf
stop.
Install screws finger tight.
Center the leaf valves
on
the plate using index
12321 marks.
IMPORTANT: Used leaf valves must not
be
turned over for reuse. Leaf valve may break when
returned to service, causing serious powerhead
damage.
If
any leaf valves are standing open, apply light
pressure using a pencil eraser.
If
leaf valve closes
with light pressure, valve
is
acceptable. If not,
inspect leaf plate for high spots or burrs.
IMPORTANT: Do not lap leaf plate. If plate
is
too
smooth, the leaf valves may stick closed after off-
season storage.
166
1
1. Index marks
12331
Tighten screws securely.
12320
E
o
o
~
><
~
Qj
~
i:i
~
I
