Johnson E8000 User Manual

0908
JOHNSON ELLIPTICAL E8000JOHNSON ELLIPTICAL E8000

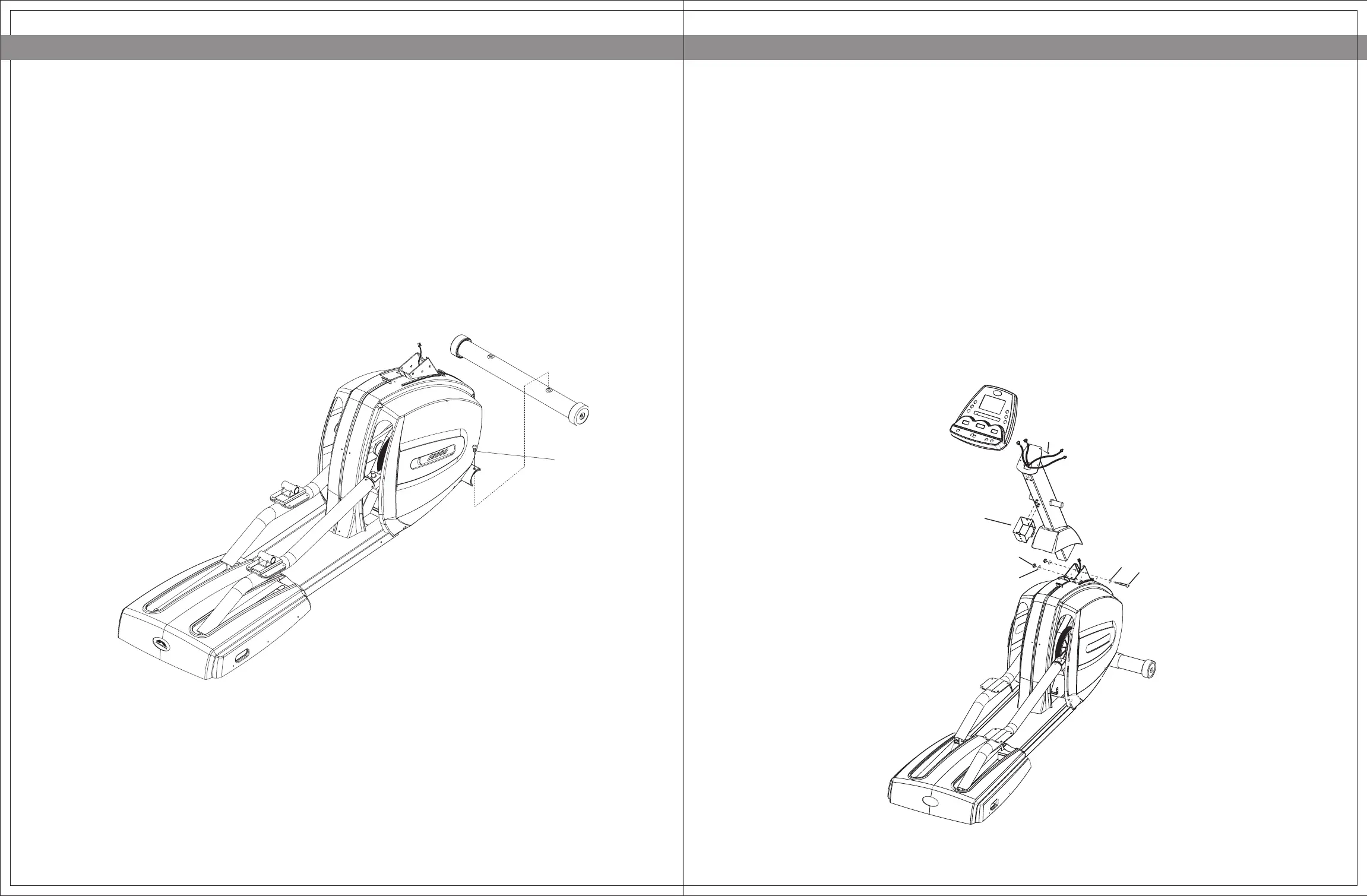

STEP 1 STEP 2
• Console Mast
• Console
1). Lift up the Main Body at the front end. Ask your assistant to insert the wooden or
hard box underneath the Main Body while you lift up the Main Body.
2). Fasten the Front Foot to the Main Body by using two screws (Z10).
1). Thread the Console Mast through the Console Mast Boot.
2). Feed the cable through the Console Mast. Tape the cable to the top of the Console
Mast to secure it temporarily.
3).
Attach the Console Mast to the Base Frame using two screws (Z03), four washers
(Z04) and two nylon nuts (Z07). Ask your assistant to hold the Console Mast while
tighten screws.
4). To fix the water-holder bracket to the console mast by hanging it onto the 2
bolts and then use #5 L-type wrench to tighten the screws.
Z10
1). Connect the cable inside the Console, and unscrew the screws attached the back
of the Console.
2). Attach the Console to the top of the Console Mast using the same screws attached
the back of the Console.
Z07
Z04
Z03
Z04
N22
Water-holder Bracket
